Kohler9136 — Clearflo Square Design Tile In Shower Drain9136

Kohler Tile-in shower drain (Shower Drain). Model K-9136. Square design with removable grid plate; Reversible collar for various tile thicknesses; Compatible with 2" and 3" PVC connections; Brass and PVC construction. material: Brass and PVC

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9136.pdfData sheet

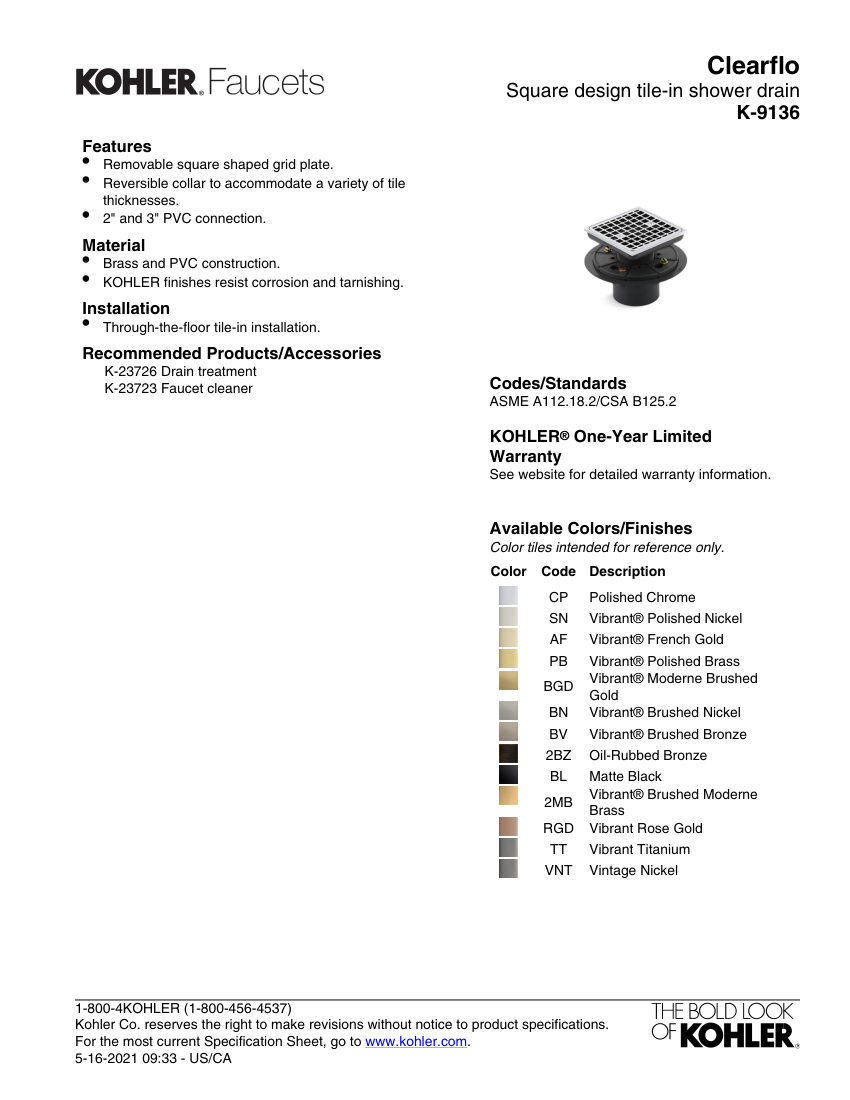

Kohler 9136 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
9136
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9136
DescriptionKohler Tile-in shower drain (Shower Drain). Model K-9136. Square design with removable grid plate; Reversible collar for various tile thicknesses; Compatible with 2" and 3" PVC connections; Brass and PVC construction. material: Brass and PVC
Connection size2" and 3" PVC
End connectionPVC
FinishPolished Chrome, Vibrant Polished Nickel, Vibrant French Gold, Vibrant Polished Brass, Vibrant Moderne Brushed Gold, Vibrant Brushed Nickel, Vibrant Brushed Bronze, Oil-Rubbed Bronze, Matte Black, Vibrant Brushed Moderne Brass, Vibrant Rose Gold, Vibrant Titanium, Vintage Nickel
MountingThrough
