Kohler922
Kohler Laminar Wall Or Ceiling Mount Bath Filler (Bath Filler). Model K-922. 0.8" (20 mm) orifice for splatter-free column; Pressure-compensating flow control; Easy-to-access cartridge for cleaning; Complements Purist faucets and accessories. material: Solid-brass
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Kohler
- Catalog no.
- 922
- Product type
- Plumbing
- MasterFormat
- 22

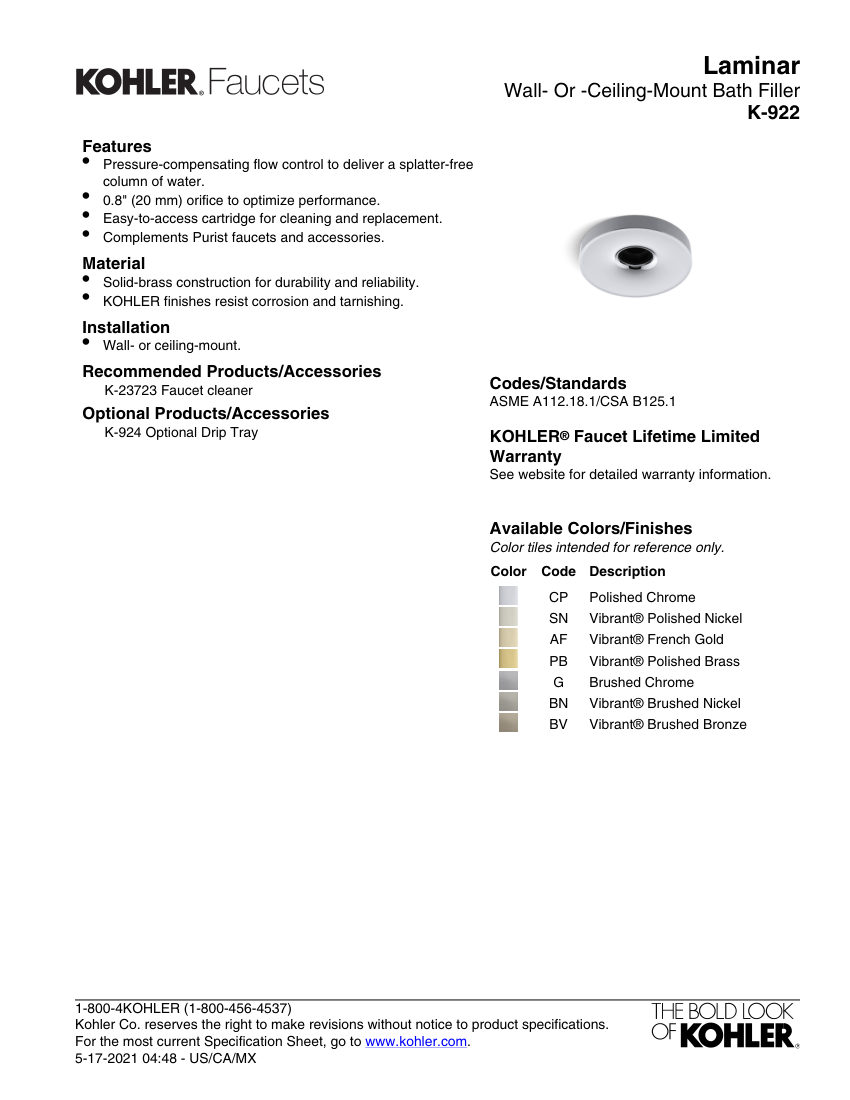

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 922 |
|---|---|
| Description | Kohler Laminar Wall Or Ceiling Mount Bath Filler (Bath Filler). Model K-922. 0.8" (20 mm) orifice for splatter-free column; Pressure-compensating flow control; Easy-to-access cartridge for cleaning; Complements Purist faucets and accessories. material: Solid-brass |
| Connection size | 5/8" OD (1/2" Copper Tube) |
| Flow Rate | 5-10 gal/min (18.9-37.9 l/min) |
| Finish | Polished Chrome, Vibrant Polished Nickel, Vibrant French Gold, Vibrant Polished Brass, Brushed Chrome, Vibrant Brushed Nickel, Vibrant Brushed Bronze |
| Mounting | Wall- or ceiling-mount |
| Dimensions | Orifice: 13/16" (21 mm) |
| Height | 14" (356 m |
