Kohler9530 — Deck Mount Two Way Diverter Valve9530

Kohler Two-way Diverter Valve (Valve). Model K-9530. Two-way brass diverter valve; Includes backflow prevention; Complies with ASME A112.18.1/CSA B125.1; Available in 9 finishes including Polished Chrome and Matte Black. material: Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDF9530.pdfData sheet

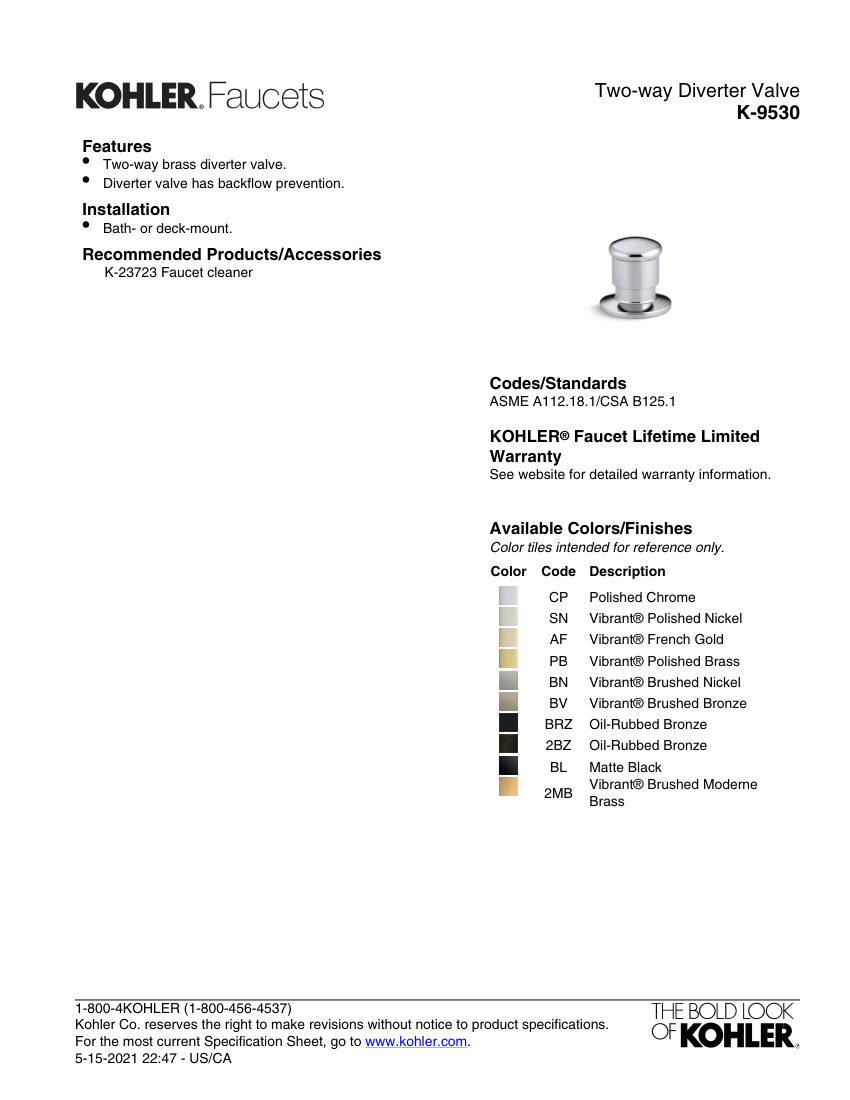

Kohler 9530 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Kohler
Catalog no.
9530
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog number9530
DescriptionKohler Two-way Diverter Valve (Valve). Model K-9530. Two-way brass diverter valve; Includes backflow prevention; Complies with ASME A112.18.1/CSA B125.1; Available in 9 finishes including Polished Chrome and Matte Black. material: Brass
Connection size1/2" Nominal Sweat (5/8" OD), 3/4" NPSM Thread Inlet; 3/8" Nominal Sweat (1/2" OD), 1/2" NPSM Thread Outlet
End connectionSweat and NPSM Thread
FinishPolished Chrome, Vibrant Polished Nickel, Vibrant French Gold, Vibrant Polished Brass, Vibrant Brushed Nickel, Vibrant Brushed Bronze, Oil-Rubbed Bronze, Matte Black, Vibrant Brushed Moderne
