MoenTilt Chrome one-handle low arc pullout kitchen faucetS71409-series

A single handle kitchen faucet constructed from metal with various finishes, featuring quick connect installation and a pullout spray with a 59-inch braided hose. It includes flexible supply lines with 3/8-inch compression fittings, a spout that rotates 110°, and a lever-style handle.

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFS71409-series.pdfData sheet

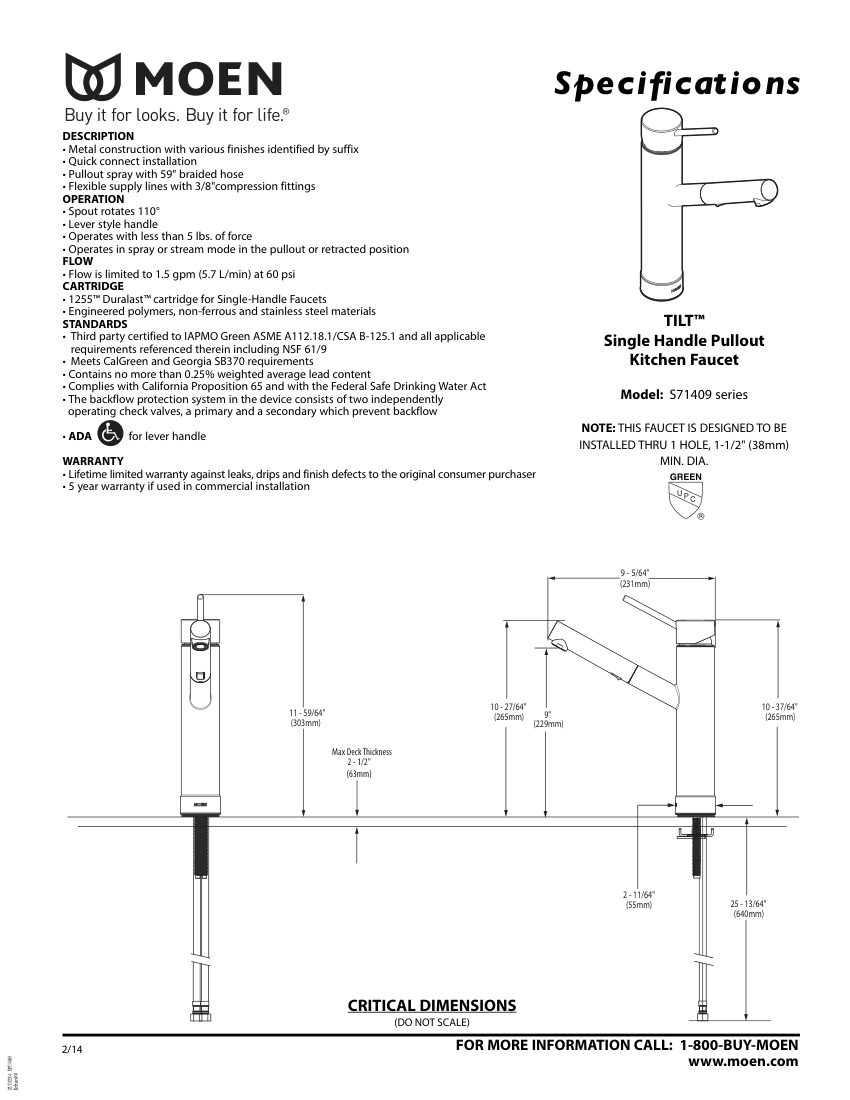

Moen S71409-series cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Moen
Catalog no.
S71409-series
Product type
Plumbing
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberS71409-series
DescriptionA single handle kitchen faucet constructed from metal with various finishes, featuring quick connect installation and a pullout spray with a 59-inch braided hose. It includes flexible supply lines with 3/8-inch compression fittings, a spout that rotates 110°, and a lever-style handle.

Also cataloged as: S71409
