DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

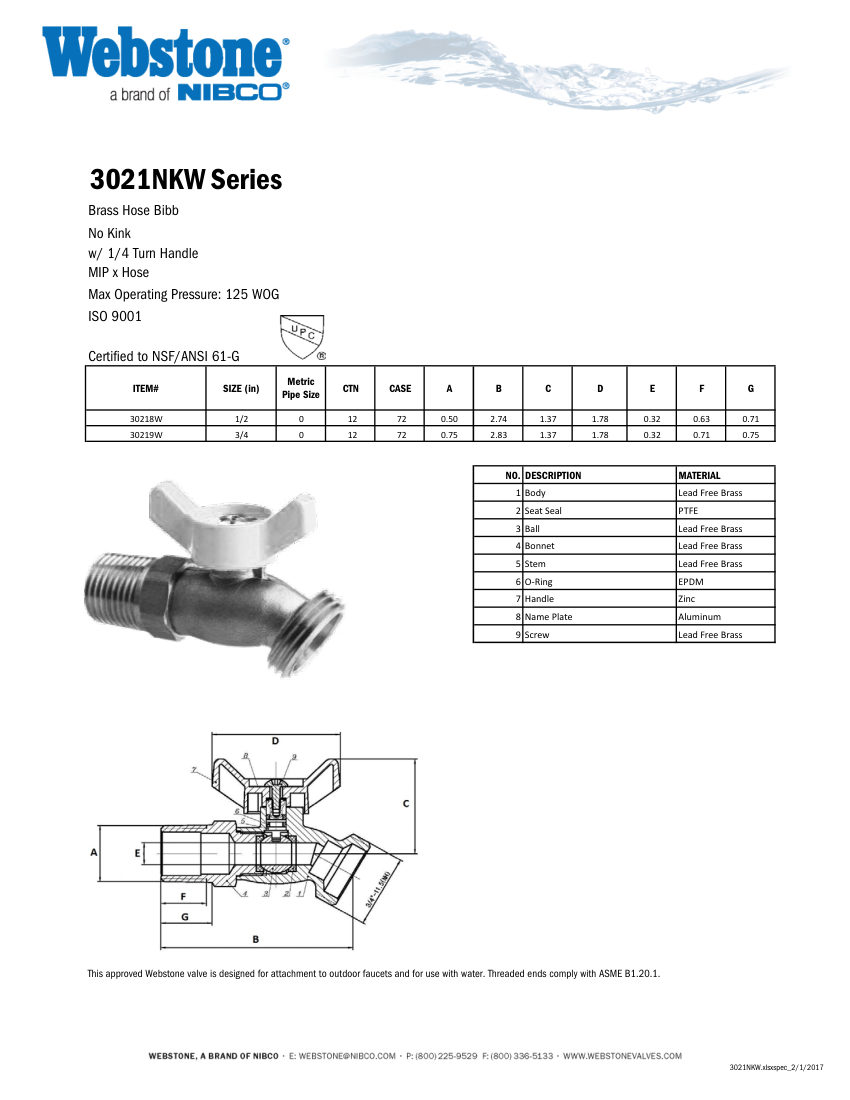

NIBCOH-Hosebibb_ZSpec3021
NIBCO Brass Hose Bibb (Hose Bibb). Model 3021NKW Series. No Kink design; 1/4 Turn Handle; PTFE Seat Seal; EPDM O-Ring. material: Lead Free Brass
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- 3021
- Product type
- Plumbing/Valves
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 3021 |
|---|---|
| Description | NIBCO Brass Hose Bibb (Hose Bibb). Model 3021NKW Series. No Kink design; 1/4 Turn Handle; PTFE Seat Seal; EPDM O-Ring. material: Lead Free Brass |
| Connection size | 1/2 in, 3/4 in |
| End connection | MIP x Hose |
| Pressure Rating | 125 WOG |
| Dimensions | A: 72mm, B: 0.50-0.75in, C: 1.37in, D: 1.78in, E: 0.32in, F: 0.63-0.71in, G: 0.71-0.75in |
| Compliance | NSF/ANSI 61-G, ISO 9001, ASME B1.20.1. |
Also cataloged as: 30218W, 30219W, 3021-8W, 3021-9W
