NIBCO61
NIBCO Bent Nose Hose Bibb (Garden Valves). Model 61. Maximum Temperature 180°F; Body and Bonnet made of Cast Copper-Based Alloy C84400; Seat Disc is Buna-N; Packing is Graphite Impregnated, Asbestos-Free. material: Cast Copper-Based Alloy C84400
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- 61
- Product type
- Plumbing/Valves
- MasterFormat
- 22

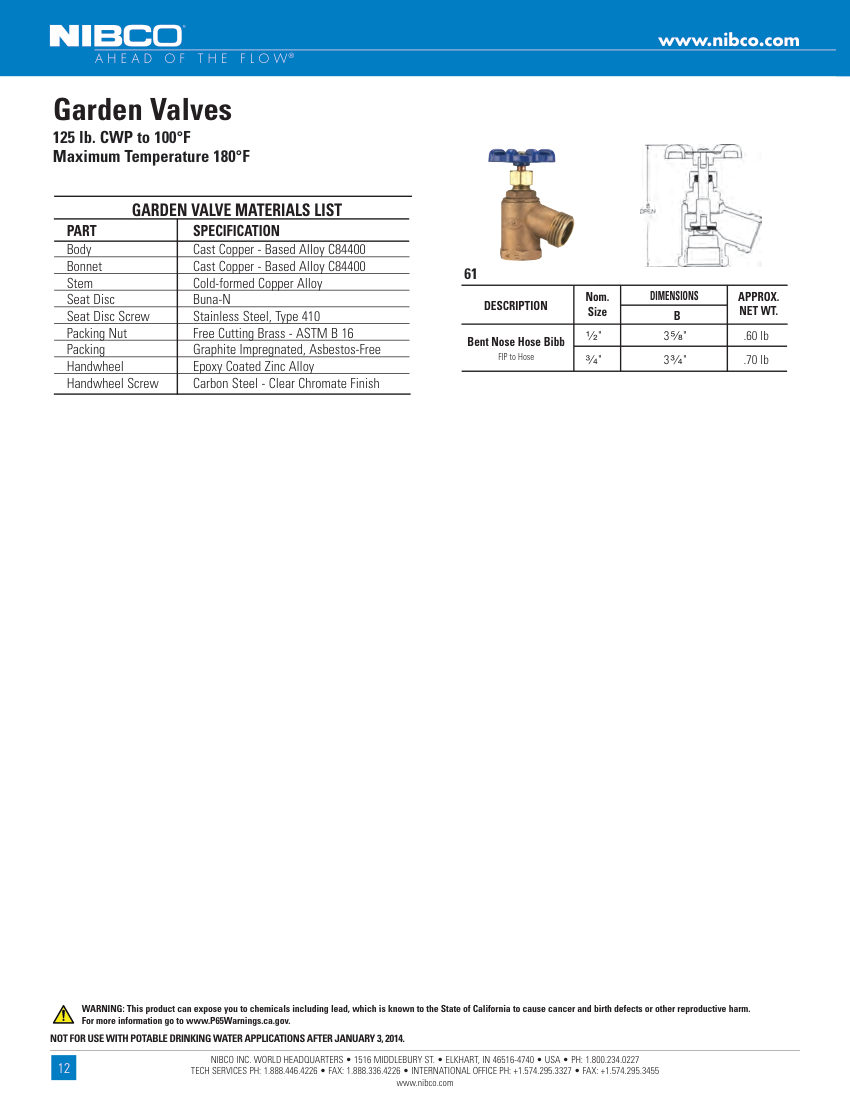

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | 61 |
|---|---|
| Description | NIBCO Bent Nose Hose Bibb (Garden Valves). Model 61. Maximum Temperature 180°F; Body and Bonnet made of Cast Copper-Based Alloy C84400; Seat Disc is Buna-N; Packing is Graphite Impregnated, Asbestos-Free. material: Cast Copper-Based Alloy C84400 |
| Connection size | 3/4" FIP to Hose |
| End connection | FIP to Hose |
| Pressure Rating | 125 lb. CWP |
| Finish | Epoxy Coated Zinc Alloy (Handwheel) |
| Dimensions | B: 3 1/4", C: 3 1/2". |
