NIBCOGD-4863-8N

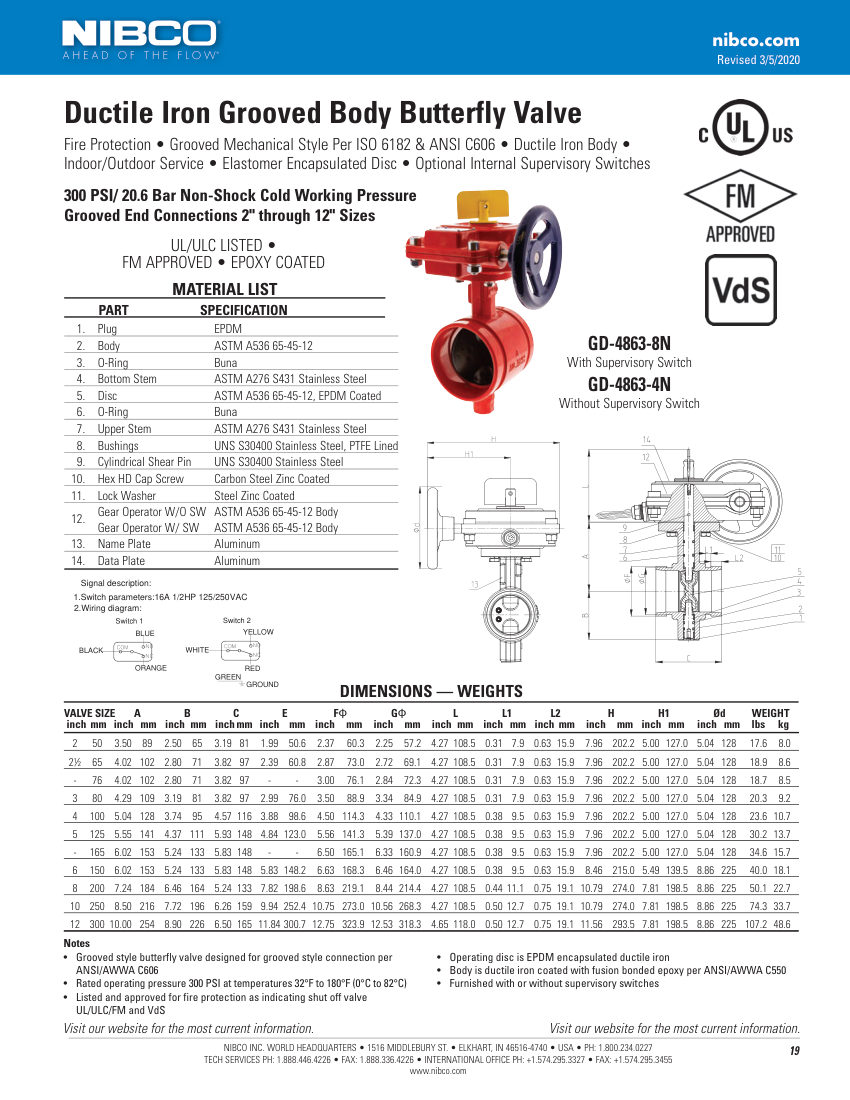

NIBCO Ductile Iron Grooved Body Butterfly Valve (Butterfly Valve). Model GD-4863-8N. Elastomer Encapsulated Disc (EPDM); Optional Internal Supervisory Switches; Stems made of ASTM A276 S431 Stainless Steel; Rated for temperatures 32°F to 180°F (0°C to 82°C). material: Ductile Iron (ASTM A536 65-45-12)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- GD-4863-8N
- Product type
- Plumbing/Valves
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | GD-4863-8N |
|---|---|
| Description | NIBCO Ductile Iron Grooved Body Butterfly Valve (Butterfly Valve). Model GD-4863-8N. Elastomer Encapsulated Disc (EPDM); Optional Internal Supervisory Switches; Stems made of ASTM A276 S431 Stainless Steel; Rated for temperatures 32°F to 180°F (0°C to 82°C). material: Ductile Iron (ASTM A536 65-45-12) |
| Connection size | 2" through 12" |
| End connection | Grooved |
| Pressure Rating | 300 PSI / 20.6 Bar |
| Finish | Epoxy Coated |
| Mounting | Indoor/Outdoor Service. |
