DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-108G_ZSpec

NIBCO In-Line Spring Check Valve (Check Valve). Model H-108G. Serviceable design with soft seat; Requires 2 G-Union Connections (sold separately); Max operating temperature 250°F; Cracking pressure 0.50 PSI (1") / 0.30 PSI (1 1/2"). material: Lead-Free DZR Brass Body, Stainless Steel Spring, Rubber Seat

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-108G_ZSpec.pdfData sheet

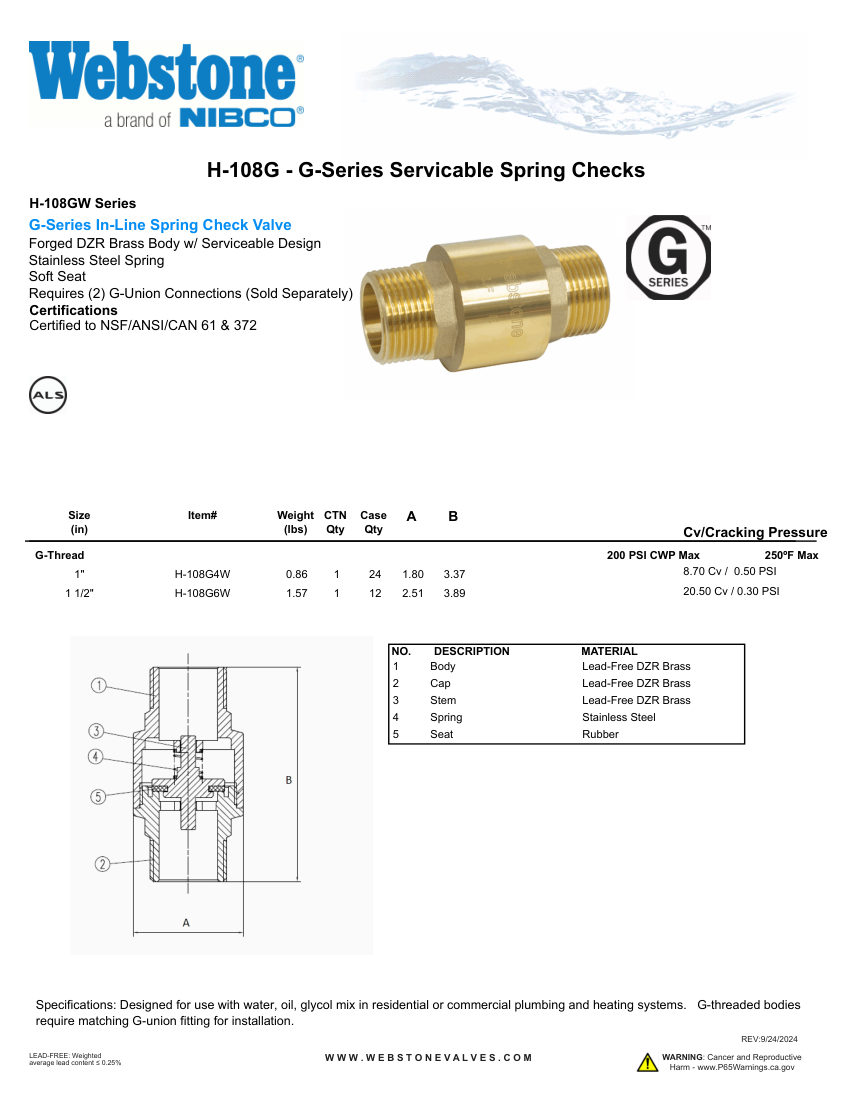

NIBCO H-108G_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-108G_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-108G_ZSpec
DescriptionNIBCO In-Line Spring Check Valve (Check Valve). Model H-108G. Serviceable design with soft seat; Requires 2 G-Union Connections (sold separately); Max operating temperature 250°F; Cracking pressure 0.50 PSI (1") / 0.30 PSI (1 1/2"). material: Lead-Free DZR Brass Body, Stainless Steel Spring, Rubber Seat
Connection size1" or 1 1/2"
End connectionG-Thread
Pressure Rating200 PSI CWP Max
Flow Rate8.70 Cv (1") / 20.50 Cv (1 1/2")
MountingIn-Line.
