DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-Sillcock_ZSpecH-3020

NIBCO Sillcock (Sillcocks). Model H-3020W Series, H-3320W Series. Forged Brass Body; 1/4 Turn Handle; PTFE Seat; EPDM O-Ring. material: Lead-Free Brass, PTFE, EPDM, Steel CP, Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-3020.pdfData sheet

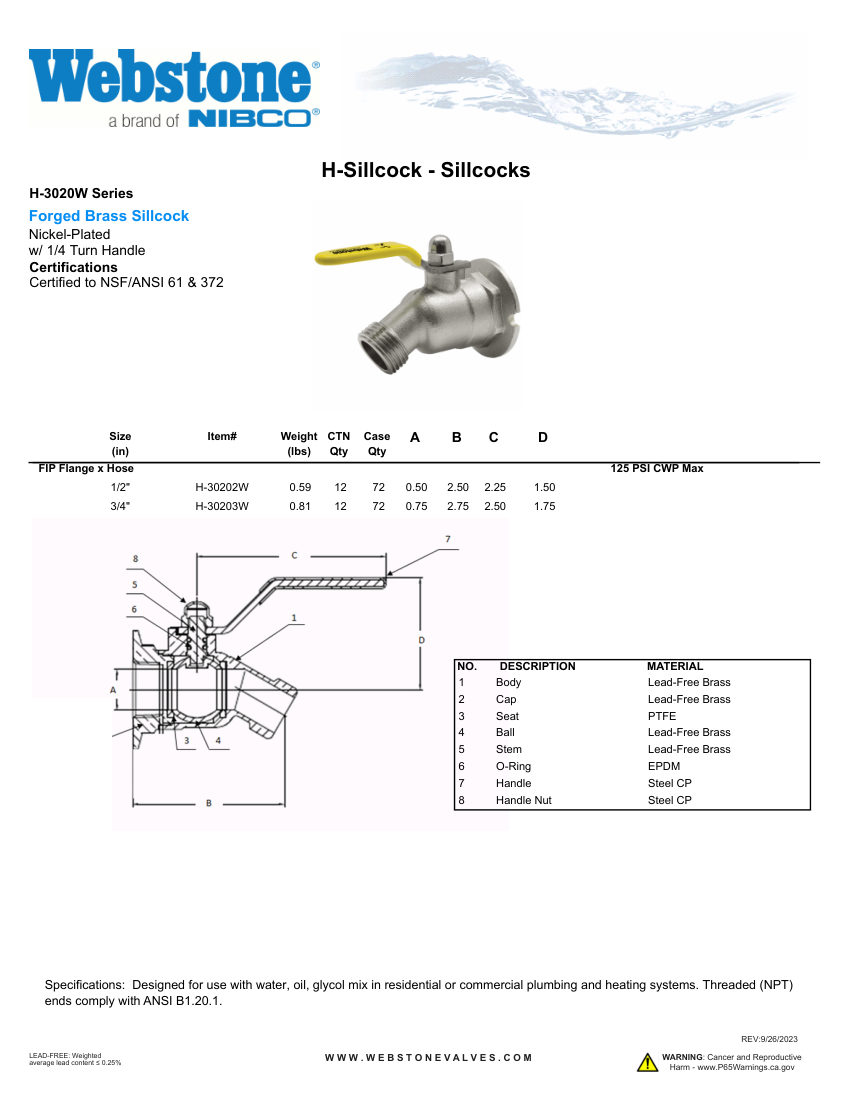

NIBCO H-3020 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-3020
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-3020
DescriptionNIBCO Sillcock (Sillcocks). Model H-3020W Series, H-3320W Series. Forged Brass Body; 1/4 Turn Handle; PTFE Seat; EPDM O-Ring. material: Lead-Free Brass, PTFE, EPDM, Steel CP, Stainless Steel
Connection size1/2", 3/4"
End connectionFIP Flange x Hose, F1960 PEX Flange x Hose
Pressure Rating125 PSI CWP Max
FinishNickel-Plated
DimensionsA: 0.50-0.75 in, B: 2.50-3.75 in, C: 1.50-2.50 in, D: 1.50-2.31 in.

Also cataloged as: H-30202W, H-30203W, H-3020-2W, H-3020-3W
