DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-HCM-LEFT_ZSpecH-48854-43

NIBCO Left Flange Manifold (Hydro-Core Manifold Kit). Model H-HCM-LEFT. Includes (2) Full Port Isolation Valves with Hi-Flow Hose Drains; Features 3/4 FIP Union Connection; Equipped with Adjustable Packing Glands; Patented Technology. connectionSize: 1 1/4 × 3/4, 1 1/4 × 1, 1 1/2 × 1 1/4

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-48854-43.pdfData sheet

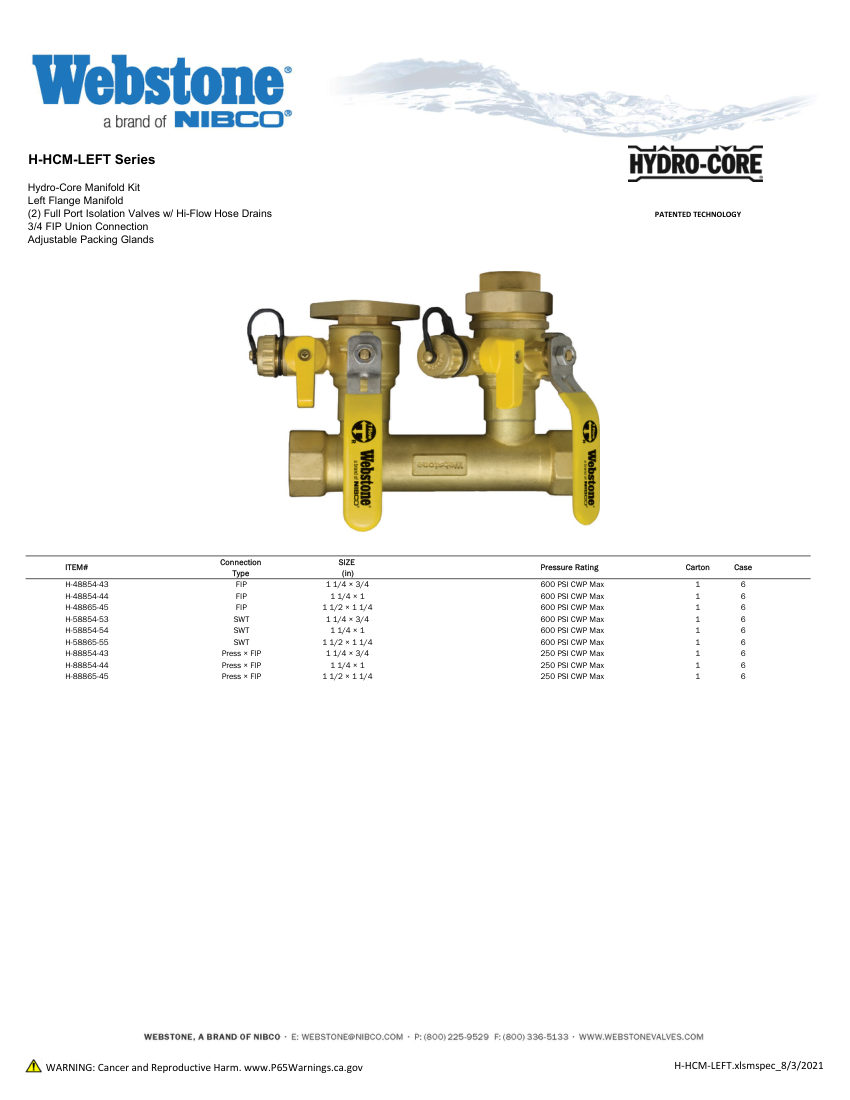

NIBCO H-48854-43 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-48854-43
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-48854-43
DescriptionNIBCO Left Flange Manifold (Hydro-Core Manifold Kit). Model H-HCM-LEFT. Includes (2) Full Port Isolation Valves with Hi-Flow Hose Drains; Features 3/4 FIP Union Connection; Equipped with Adjustable Packing Glands; Patented Technology. connectionSize: 1 1/4 × 3/4, 1 1/4 × 1, 1 1/2 × 1 1/4
End connectionFIP, SWT, Press × FIP
Pressure Rating600 PSI CWP Max (FIP/SWT), 250 PSI CWP Max (Press × FIP)
MountingLeft Flange
ComplianceCalifornia Proposition 65 Warning.

Also cataloged as: H-48854-44, H-48865-45, H-58854-53, H-58854-54, H-58865-55, H-88854-43, H-88854-44, H-88865-45
