DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

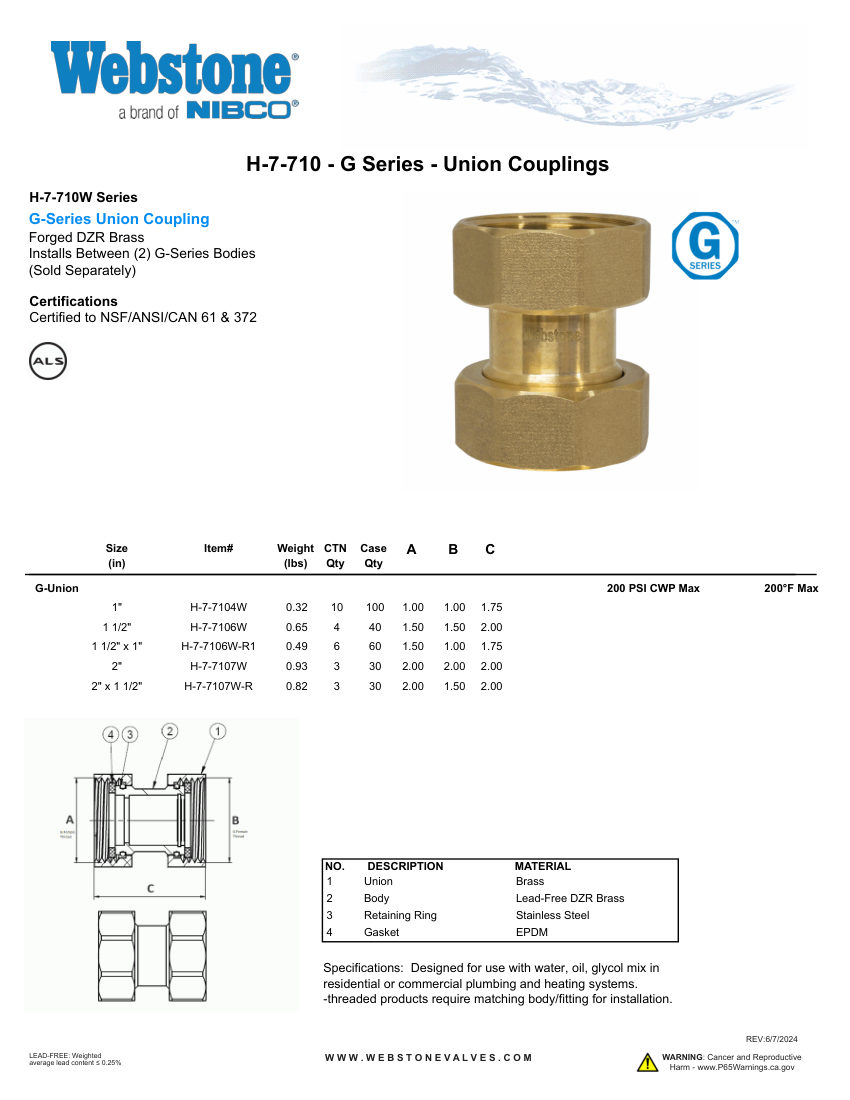

NIBCOH-7-710_ZSpec
NIBCO Union Coupling (G Series). Model H-7-710. Max Temperature: 200°F; Lead-Free: Weighted average lead content ≤ 0.25%
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- H-7-710_ZSpec
- Product type
- Plumbing/Valves
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | H-7-710_ZSpec |
|---|---|
| Description | NIBCO Union Coupling (G Series). Model H-7-710. Max Temperature: 200°F; Lead-Free: Weighted average lead content ≤ 0.25% |
| Gasket Material | EPDM |
| Retaining Ring | Stainless Steel. material: Forged DZR Brass |
| Connection size | 1" to 2" |
| End connection | Threaded |
| Pressure Rating | 200 PSI CWP Max |
| Dimensions | A: 1.00-2.00 in, B: 1.00-2.00 in, C: 1.75-2.00 in |
| Compliance | NSF/ANSI/CAN 61 & 372. |
