DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-7-910_ZSpec

NIBCO Union Fitting (G-Series Union Fitting). Model H-7-910W Series. Lead-free DZR Brass body with overmolded PP-RCT tailpiece; Compatible with PP-R & PP-RCT piping systems; Maximum operating temperature 200°F; Gasket material is EPDM. material: Forged DZR Brass, PP-RCT

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-7-910_ZSpec.pdfData sheet

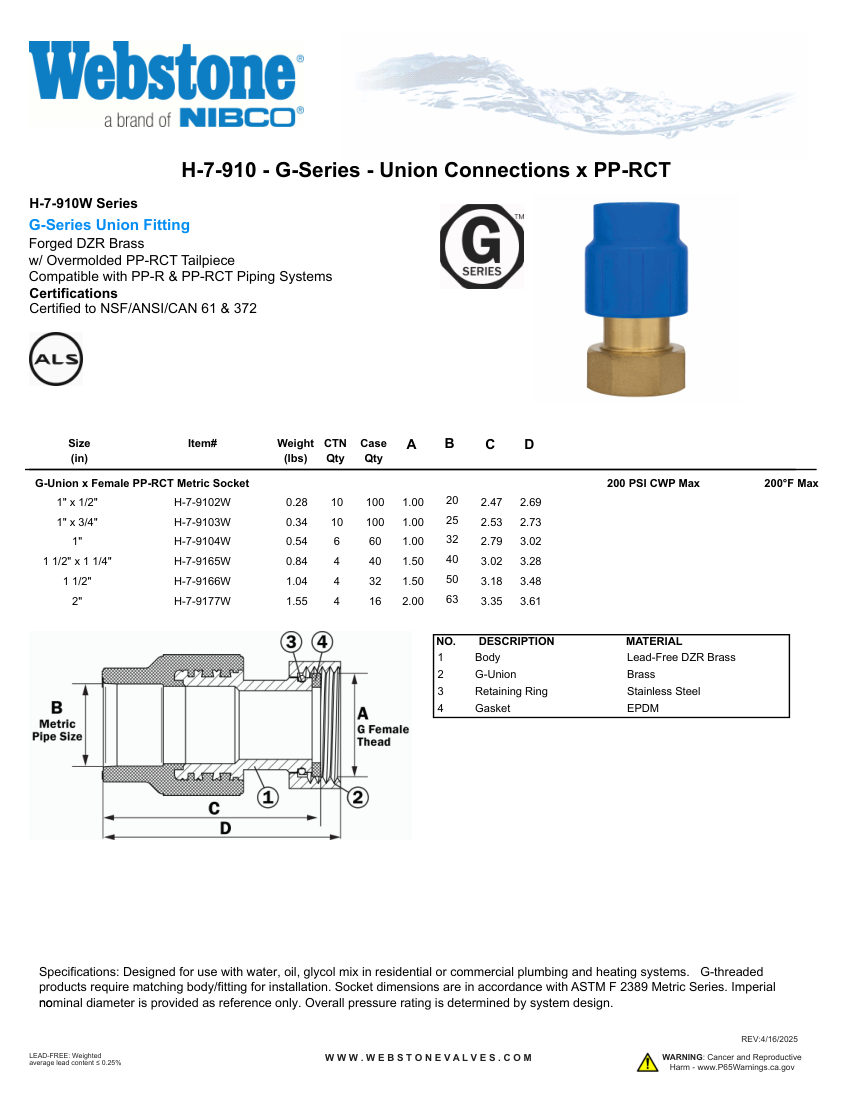

NIBCO H-7-910_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-7-910_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-7-910_ZSpec
DescriptionNIBCO Union Fitting (G-Series Union Fitting). Model H-7-910W Series. Lead-free DZR Brass body with overmolded PP-RCT tailpiece; Compatible with PP-R & PP-RCT piping systems; Maximum operating temperature 200°F; Gasket material is EPDM. material: Forged DZR Brass, PP-RCT
Connection size1" x 1/2" to 2"
End connectionG-Union x Female PP-RCT Metric Socket
Pressure Rating200 PSI CWP Max
DimensionsA: 1.00-2.00 in, B: 20-63 mm, C: 2.47-3.35 in, D: 2.69-3.61 in
ComplianceNSF/ANSI/CAN 61 & 372, ASTM F 2389.
