DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-7-C10_ZSpec

NIBCO Union Fitting (G-Series Union Fitting). Model H-7-C10. Not for use in potable or gas applications; Designed for water, oil, and glycol mix in heating systems; Features EPDM o-rings for press ends; Includes stainless steel grip ring, separator ring, and snap ring. material: Rolled Carbon Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-7-C10_ZSpec.pdfData sheet

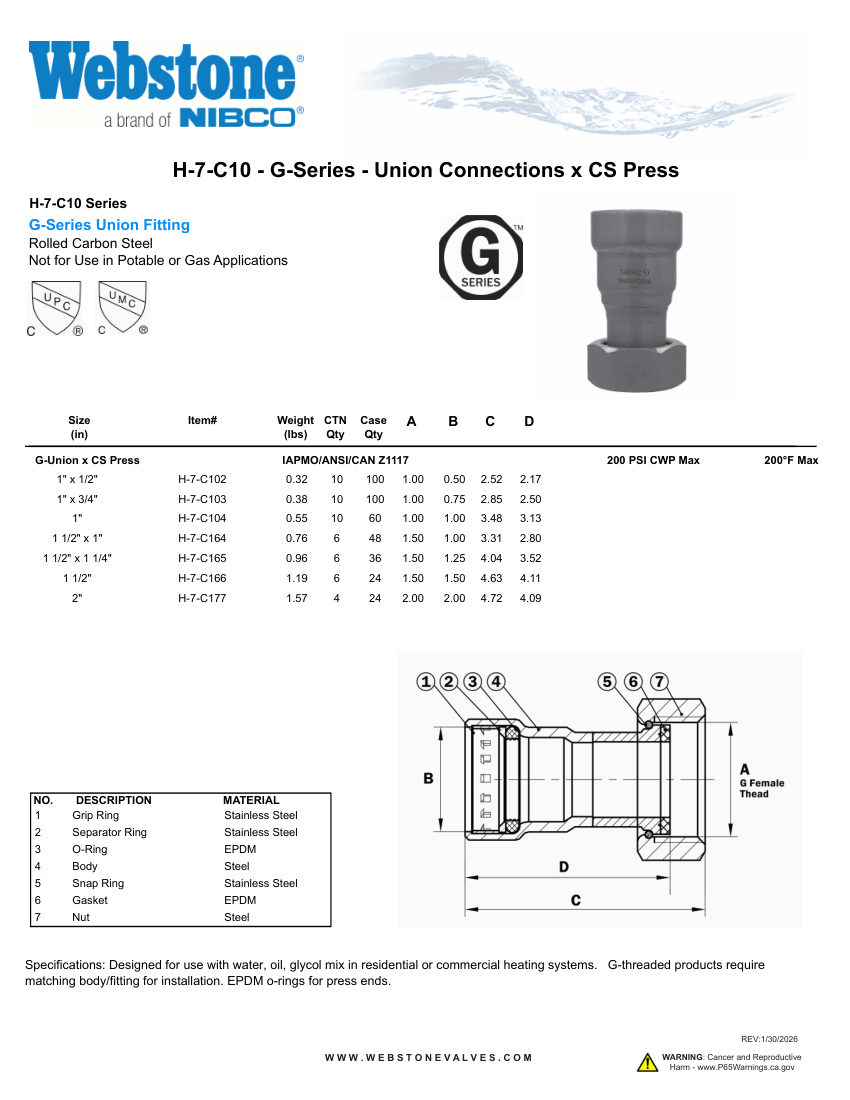

NIBCO H-7-C10_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-7-C10_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-7-C10_ZSpec
DescriptionNIBCO Union Fitting (G-Series Union Fitting). Model H-7-C10. Not for use in potable or gas applications; Designed for water, oil, and glycol mix in heating systems; Features EPDM o-rings for press ends; Includes stainless steel grip ring, separator ring, and snap ring. material: Rolled Carbon Steel
Connection size1" to 2"
End connectionG-Threaded x Compression
Pressure Rating200 PSI CWP Max
DimensionsVaries by size (e.g., 1" x 1/2": A=1.00, B=0.50, C=2.52, D=2.17)
ComplianceIAPMO/ANSI/CAN Z1117.
  • Official cut sheet, indexed
