NIBCOH-7-x30_ZSpec

NIBCO Pressure Gauge Fitting (G-Series Pressure Gauge Fittings). Model H-7-x30. Forged DZR Brass Union Fitting; Includes Back Mounted Pressure Gauge; Max Temperature 200°F; Lead-Free (Weighted average lead content ≤ 0.25%). material: Lead-Free DZR Brass, Stainless Steel, EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-7-x30_ZSpec.pdfData sheet

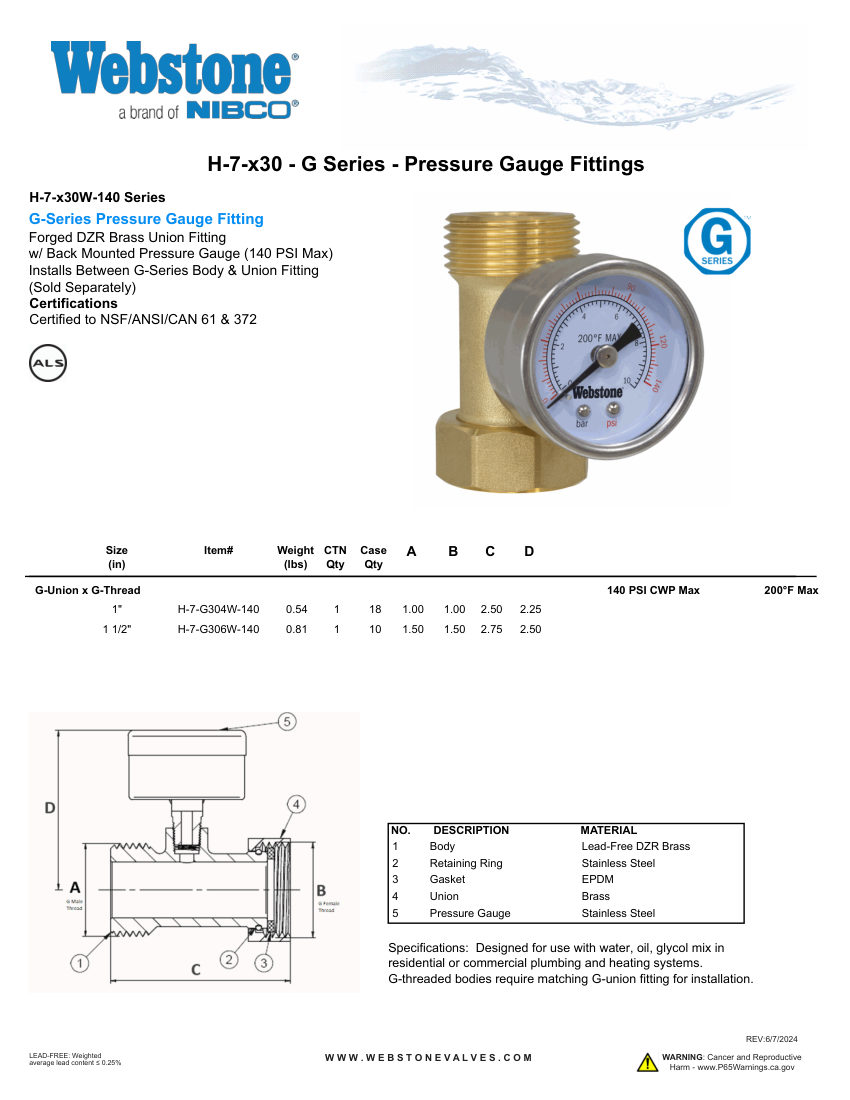

NIBCO H-7-x30_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-7-x30_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-7-x30_ZSpec
DescriptionNIBCO Pressure Gauge Fitting (G-Series Pressure Gauge Fittings). Model H-7-x30. Forged DZR Brass Union Fitting; Includes Back Mounted Pressure Gauge; Max Temperature 200°F; Lead-Free (Weighted average lead content ≤ 0.25%). material: Lead-Free DZR Brass, Stainless Steel, EPDM
Connection size1", 1 1/2"
End connectionG-Union x G-Thread
Pressure Rating60 PSI CWP Max, 140 PSI CWP Max
MountingBack Mounted Pressure Gauge
DimensionsA: 1.00-1.50 in, B: 1.00-1.50 in, C: 2.50-2.75 in, D: 2.25-2.50 in.
