NIBCOH-7-x60_ZSpec
NIBCO End Cap (G Series). Model H-7-x60. Forged DZR Brass construction; EPDM Gasket included; Maximum operating temperature 200°F; Lead-free with weighted average lead content ≤ 0.25%. material: Lead-Free DZR Brass
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- H-7-x60_ZSpec
- Product type
- Plumbing/Valves
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | H-7-x60_ZSpec |
|---|---|
| Description | NIBCO End Cap (G Series). Model H-7-x60. Forged DZR Brass construction; EPDM Gasket included; Maximum operating temperature 200°F; Lead-free with weighted average lead content ≤ 0.25%. material: Lead-Free DZR Brass |
| Connection size | 1", 1 1/2", 2" |
| End connection | G-Thread |
| Pressure Rating | 200 PSI CWP Max |
| Dimensions | A: 1.00-2.00 in, B: 1.54-2.64 in, C: 0.59-0.67 in |
| Compliance | NSF/ANSI/CAN 61 & 372. |
Also cataloged as: H-7x60_ZSpec

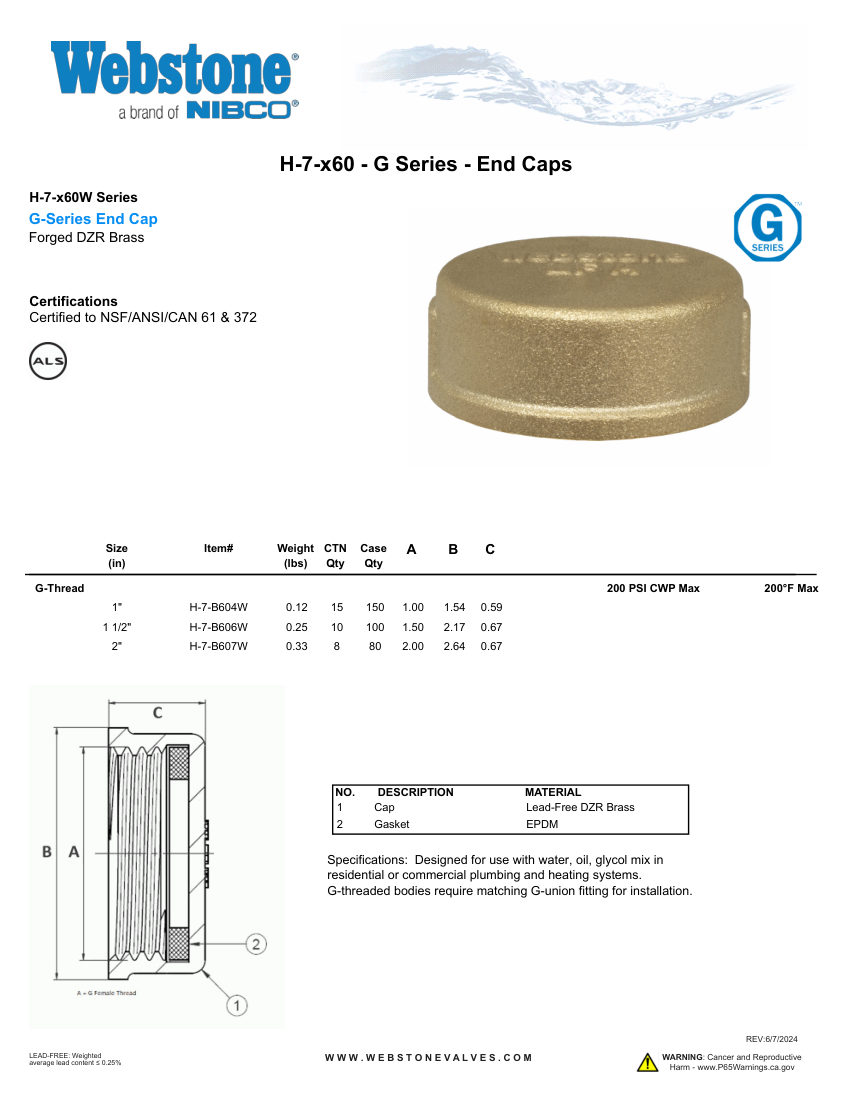

- Official cut sheet, indexed
