DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-7000-CAN_ZSpec

NIBCO Thermostatic Mixing Valve (G-Series Thermostatic Mixing Valves). Model H-7000W-CAN. Outlet Temperature Range 95º- 120ºF; Max Inlet Temperature 185ºF; Lead-Free (Weighted average lead content ≤ 0.25%); Requires (3) G-Union Fittings (Sold Separately). material: Forged Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-7000-CAN_ZSpec.pdfData sheet

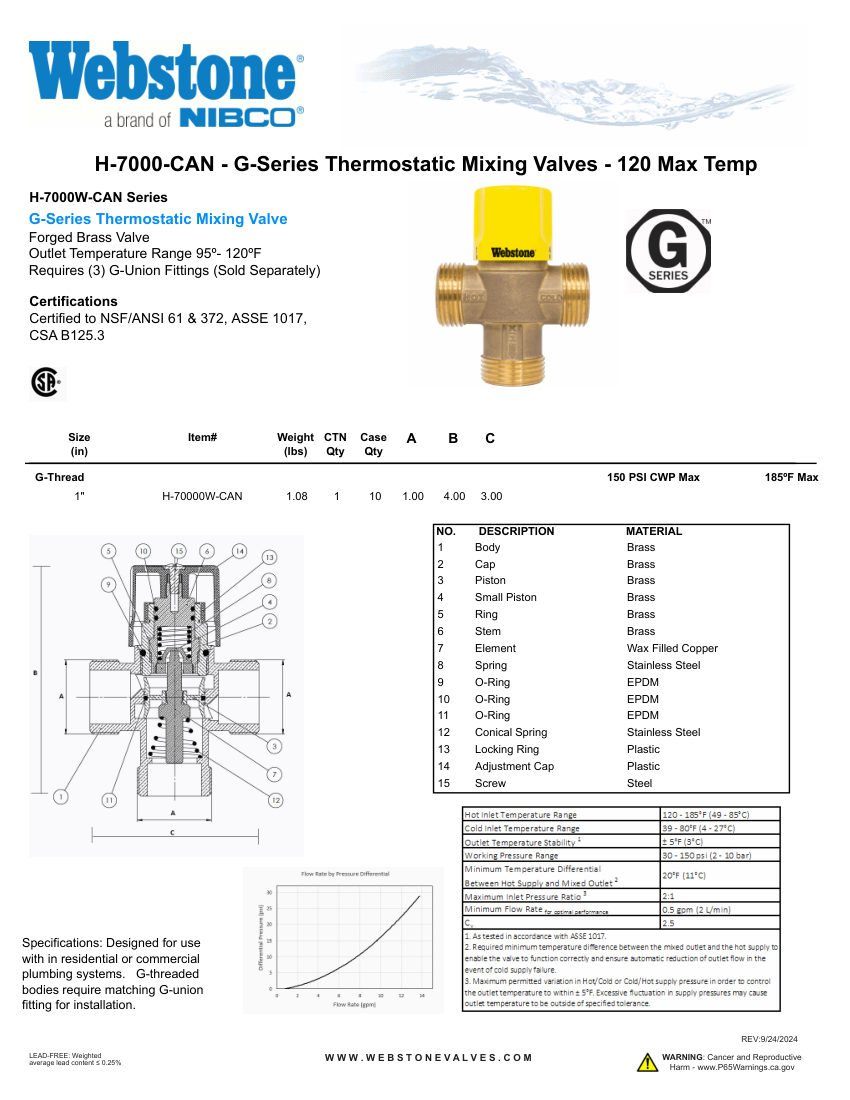

NIBCO H-7000-CAN_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-7000-CAN_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-7000-CAN_ZSpec
DescriptionNIBCO Thermostatic Mixing Valve (G-Series Thermostatic Mixing Valves). Model H-7000W-CAN. Outlet Temperature Range 95º- 120ºF; Max Inlet Temperature 185ºF; Lead-Free (Weighted average lead content ≤ 0.25%); Requires (3) G-Union Fittings (Sold Separately). material: Forged Brass
Connection size1"
End connectionG-Thread
Pressure Rating150 PSI CWP Max
DimensionsA: 1.00 in, B: 4.00 in, C: 3.00 in
ComplianceNSF/ANSI 61 & 372, ASSE 1017, CSA B125.3.
