DIV 22 · PLUMBINGSPEC SHEETCUT SHEET INDEXED

NIBCOH-70070W-Y

The G-Series Y-Pattern Thermostatic Mixing Valve is an in-line DZR brass valve featuring an angled cold inlet and a temperature locking handle. Designed for use with water, oil, and glycol mix up to 203°F, it is suitable for residential and commercial plumbing and heating systems, particularly high temperature hydronic applications. It requires three G-union fittings, which are sold separately.

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-70070W-Y.pdfData sheet

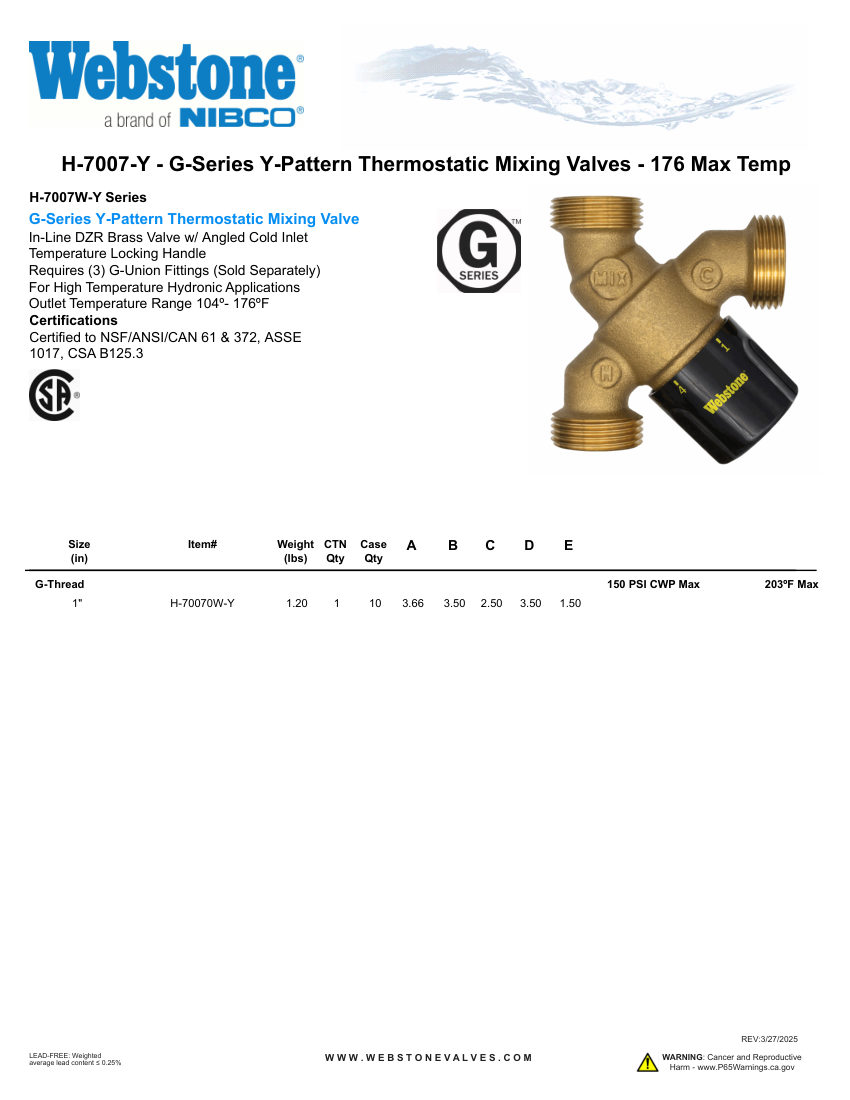

NIBCO H-70070W-Y cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-70070W-Y
Product type
Spec Sheet
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-70070W-Y
DescriptionThe G-Series Y-Pattern Thermostatic Mixing Valve is an in-line DZR brass valve featuring an angled cold inlet and a temperature locking handle. Designed for use with water, oil, and glycol mix up to 203°F, it is suitable for residential and commercial plumbing and heating systems, particularly high temperature hydronic applications. It requires three G-union fittings, which are sold separately.

Also cataloged as: H-7007-Y, H-7007W-Y
