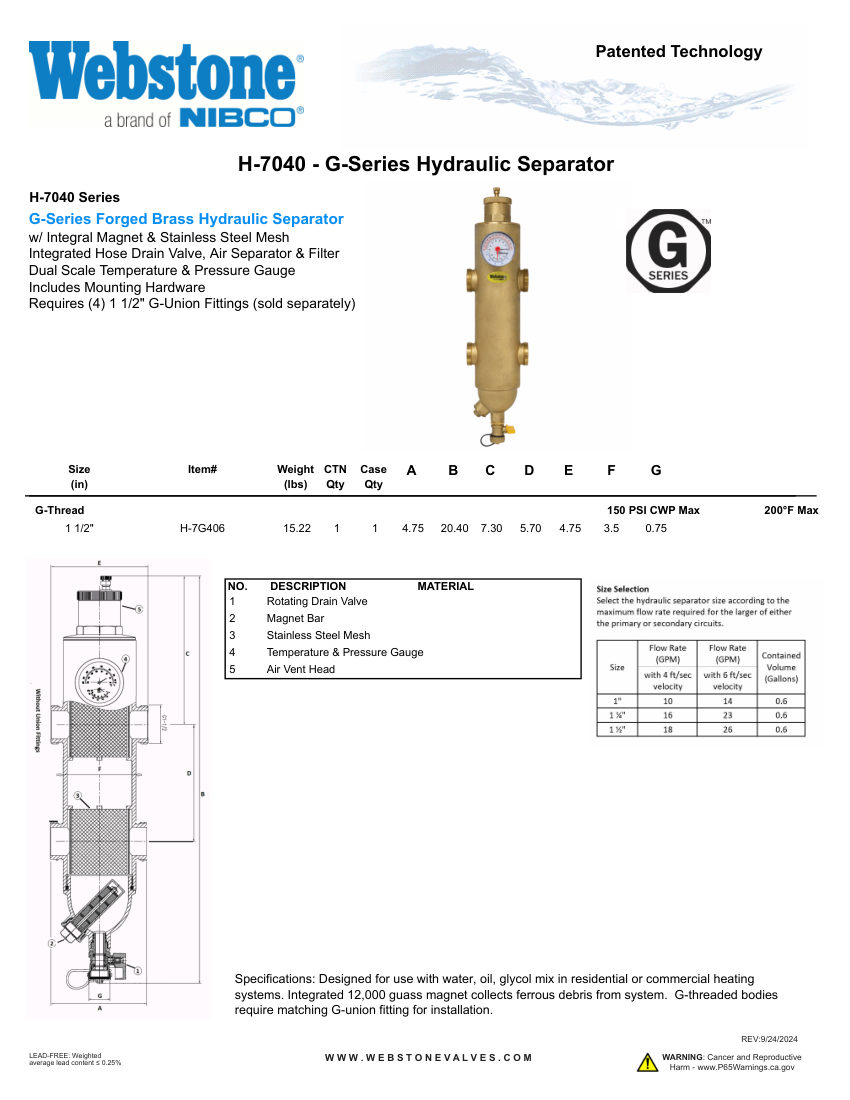

NIBCOH-7040_ZSpec
NIBCO Hydraulic Separator. Model H-7040. Integrated 12,000 gauss magnet and stainless steel mesh filter; Includes integrated hose drain valve and air separator; Dual scale temperature and pressure gauge; Maximum operating temperature 200°F. material: Forged Brass
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- H-7040_ZSpec
- Product type
- Plumbing/Valves
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | H-7040_ZSpec |
|---|---|
| Description | NIBCO Hydraulic Separator. Model H-7040. Integrated 12,000 gauss magnet and stainless steel mesh filter; Includes integrated hose drain valve and air separator; Dual scale temperature and pressure gauge; Maximum operating temperature 200°F. material: Forged Brass |
| Connection size | 1 1/2" |
| End connection | G-Thread |
| Pressure Rating | 150 PSI CWP Max |
| Mounting | Includes Mounting Hardware |
| Dimensions | A: 4.75 in, B: 20.40 in, C: 7.30 in, D: 5.70 in, E: 4.75 in, F: 3.5 in, G: 0.75 in. |
