DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-774x_ZSpec

NIBCO Thermostatic Mixing Valve (Thermostatic Mixing Valves). Model H-774xW Series. Factory Preset at 120ºF; Outlet Temperature Range 95º-120ºF; Includes Integral Check Valves; Lead-Free. material: DZR Bronze

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-774x_ZSpec.pdfData sheet

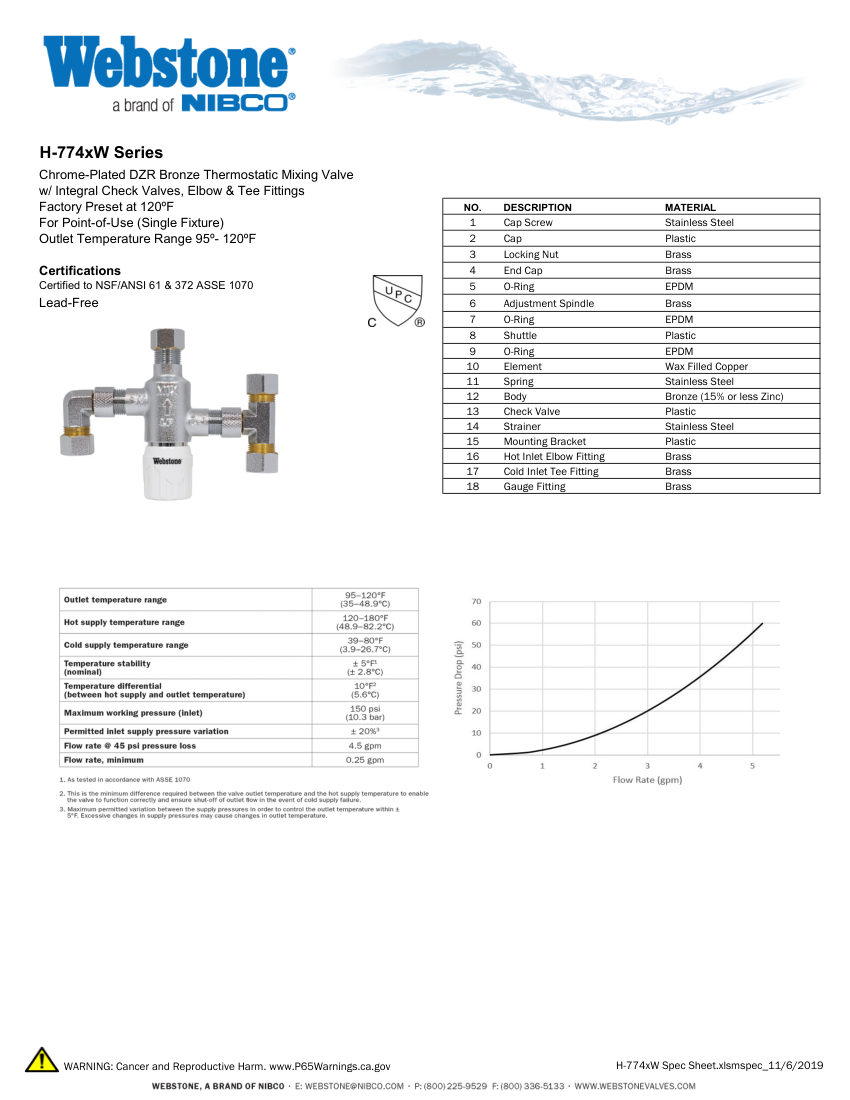

NIBCO H-774x_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-774x_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-774x_ZSpec
DescriptionNIBCO Thermostatic Mixing Valve (Thermostatic Mixing Valves). Model H-774xW Series. Factory Preset at 120ºF; Outlet Temperature Range 95º-120ºF; Includes Integral Check Valves; Lead-Free. material: DZR Bronze
Connection size3/8 in
End connectionCompression
Pressure Rating150 PSI CWP Max
FinishChrome-Plated
MountingPoint-of-Use (Single Fixture).
