NIBCOH-7x31_ZSpec
NIBCO Water Heater Tempering Valve (H-7x31W Series). Model H-74313W. Outlet Temperature Range 86°-120°F; Includes 18" Flex Hose Connector; Includes Integral Check Valves; Includes Temperature Gauge. material: Lead Free DZR Brass
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- H-7x31_ZSpec
- Product type
- Plumbing/Valves
- MasterFormat
- 22

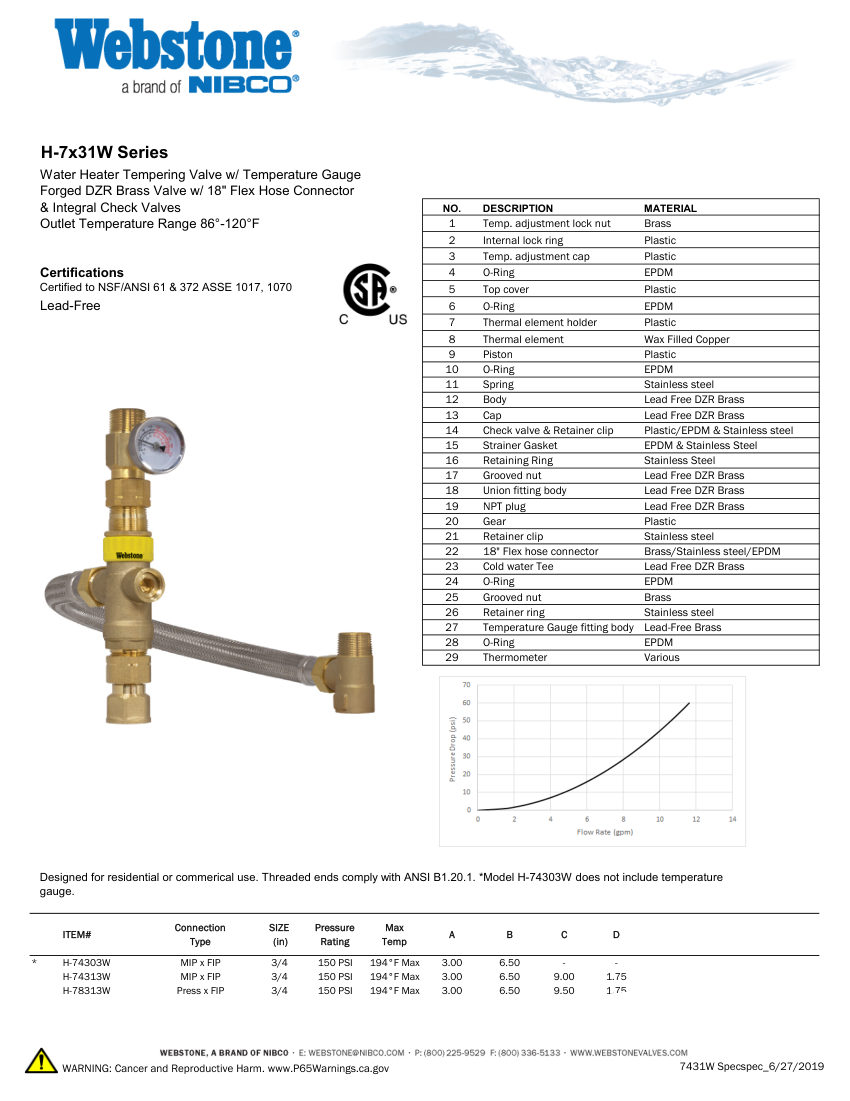

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | H-7x31_ZSpec |
|---|---|
| Description | NIBCO Water Heater Tempering Valve (H-7x31W Series). Model H-74313W. Outlet Temperature Range 86°-120°F; Includes 18" Flex Hose Connector; Includes Integral Check Valves; Includes Temperature Gauge. material: Lead Free DZR Brass |
| Connection size | 3/4 in |
| End connection | MIP x FIP |
| Pressure Rating | 150 PSI |
| Dimensions | A: 3.00 in, B: 6.50 in, C: 9.00 in, D: 1.75 in |
| Compliance | NSF/ANSI 61, NSF/ANSI 372, ASSE 1017, ASSE 1070, Lead-Free. |
