NIBCOH-7x61_ZSpec
NIBCO Full Port Forged Brass Ball Valve w/ Auto Air Vent (Boiler Vent Valve). Model H-74613. Max Temperature: 200ºF; Includes 3/4 FIP Pressure Relief Valve Port; Includes 1/4 NPT Gauge Ports (Plugged); Includes 3/4 FIP Low Water Cutoff Port (Plugged). material: Forged Brass
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- H-7x61_ZSpec
- Product type
- Plumbing/Valves
- MasterFormat
- 22

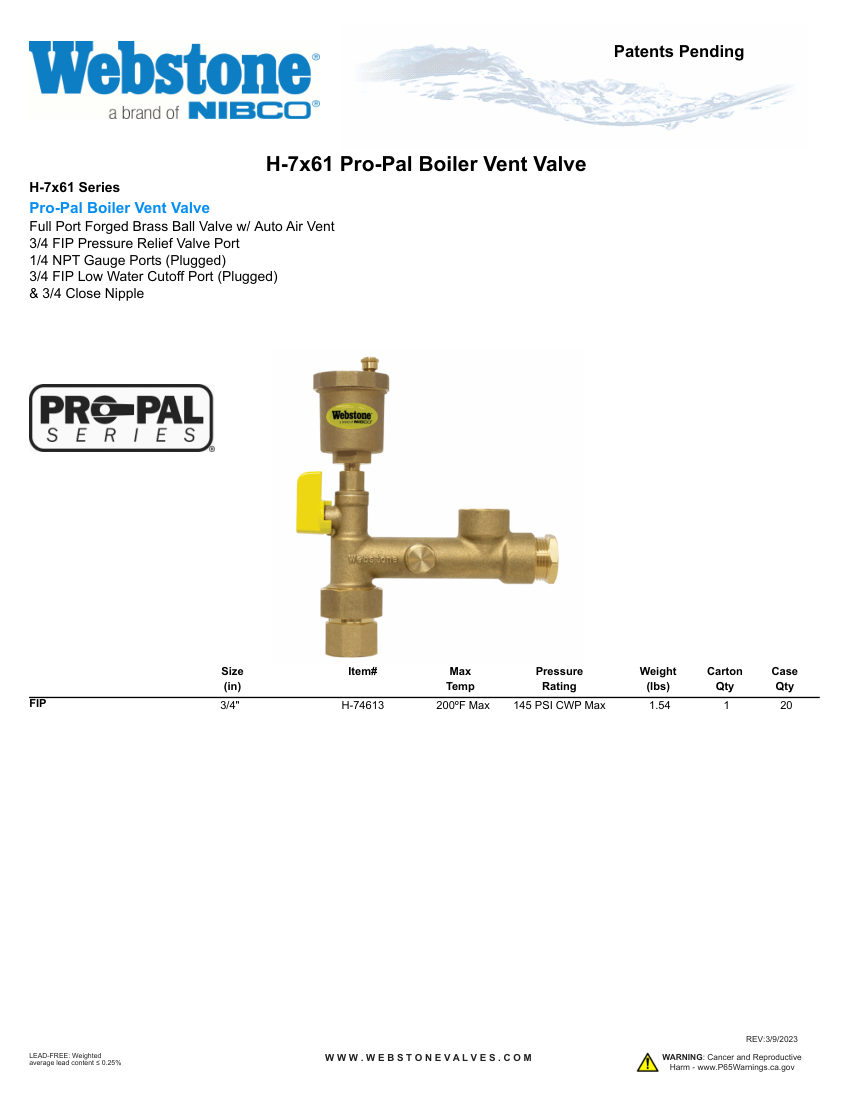

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | H-7x61_ZSpec |
|---|---|
| Description | NIBCO Full Port Forged Brass Ball Valve w/ Auto Air Vent (Boiler Vent Valve). Model H-74613. Max Temperature: 200ºF; Includes 3/4 FIP Pressure Relief Valve Port; Includes 1/4 NPT Gauge Ports (Plugged); Includes 3/4 FIP Low Water Cutoff Port (Plugged). material: Forged Brass |
| Connection size | 3/4" FIP |
| End connection | FIP |
| Pressure Rating | 145 PSI CWP Max |
| Dimensions | A: 6.09, B: 1.26, C: 1.25, D: 1.57, E: 3.15, F: 4.35 |
| Compliance | ANSI B1.20.1, Lead-Free (≤ 0.25%). |
