DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-7x70_ZSpec

NIBCO Magnetic Boiler Filter (Magnetic Boiler Filters). Model H-7x70. 12,000 Gauss Magnet with Diverter; Integrated Hose Drain Valve, Air Vent & Filter; Includes (2) Union End Connections & Service Tool; Max Temperature 250°F. material: Brass, Plastic, Nickel Plated Brass, Rubber, Teflon, Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-7x70_ZSpec.pdfData sheet

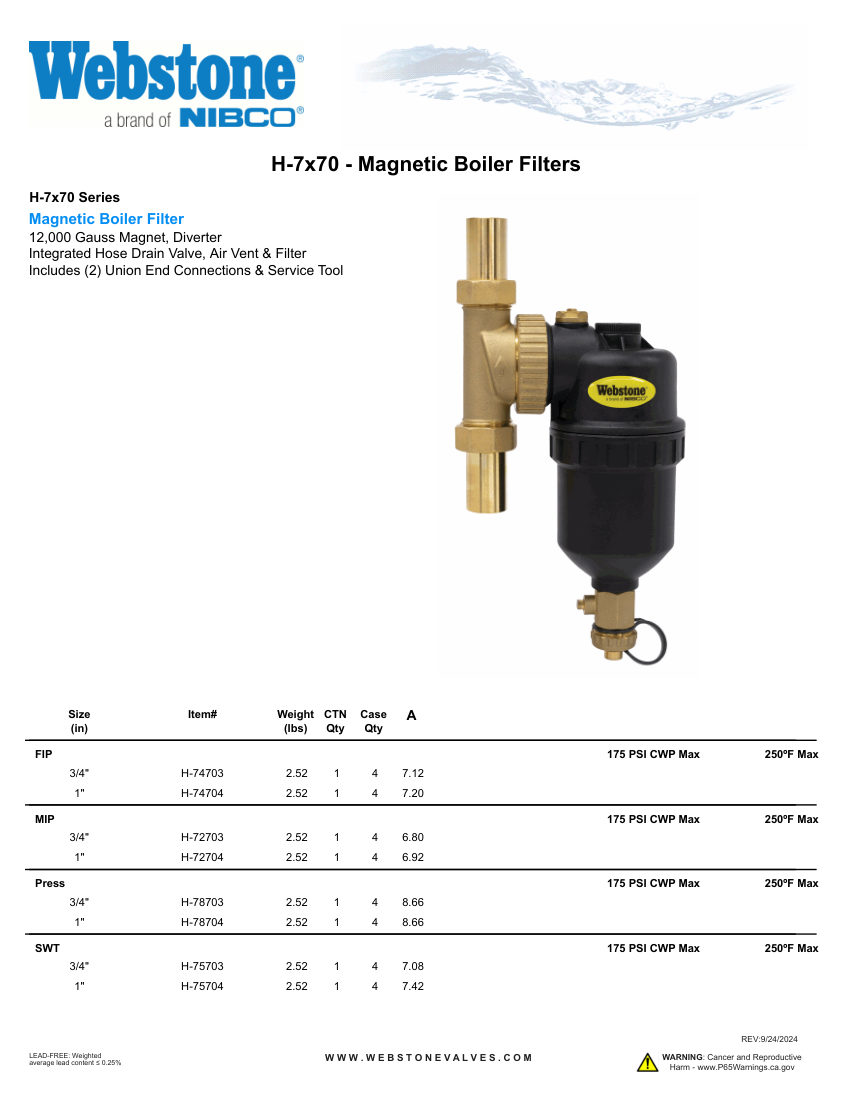

NIBCO H-7x70_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-7x70_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-7x70_ZSpec
DescriptionNIBCO Magnetic Boiler Filter (Magnetic Boiler Filters). Model H-7x70. 12,000 Gauss Magnet with Diverter; Integrated Hose Drain Valve, Air Vent & Filter; Includes (2) Union End Connections & Service Tool; Max Temperature 250°F. material: Brass, Plastic, Nickel Plated Brass, Rubber, Teflon, Stainless Steel
Connection size3/4", 1"
End connectionFIP, MIP, Press, SWT
Pressure Rating175 PSI CWP Max
ComplianceANSI B1.20.1, ASME B16.18 Annex A, Lead-Free (≤ 0.25%).
