NIBCO Magnetic Boiler Filter (Boiler Filter). Model H-7x70XL. 12,000 Gauss Magnet; Integrated Hose Drain Valve, Air Vent & Filter; Includes (2) Union End Connections & Service Tool; Max Temperature 250°F. material: Brass, Stainless Steel, Plastic, Nickel Plated Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-7x70XL_ZSpec.pdfData sheet

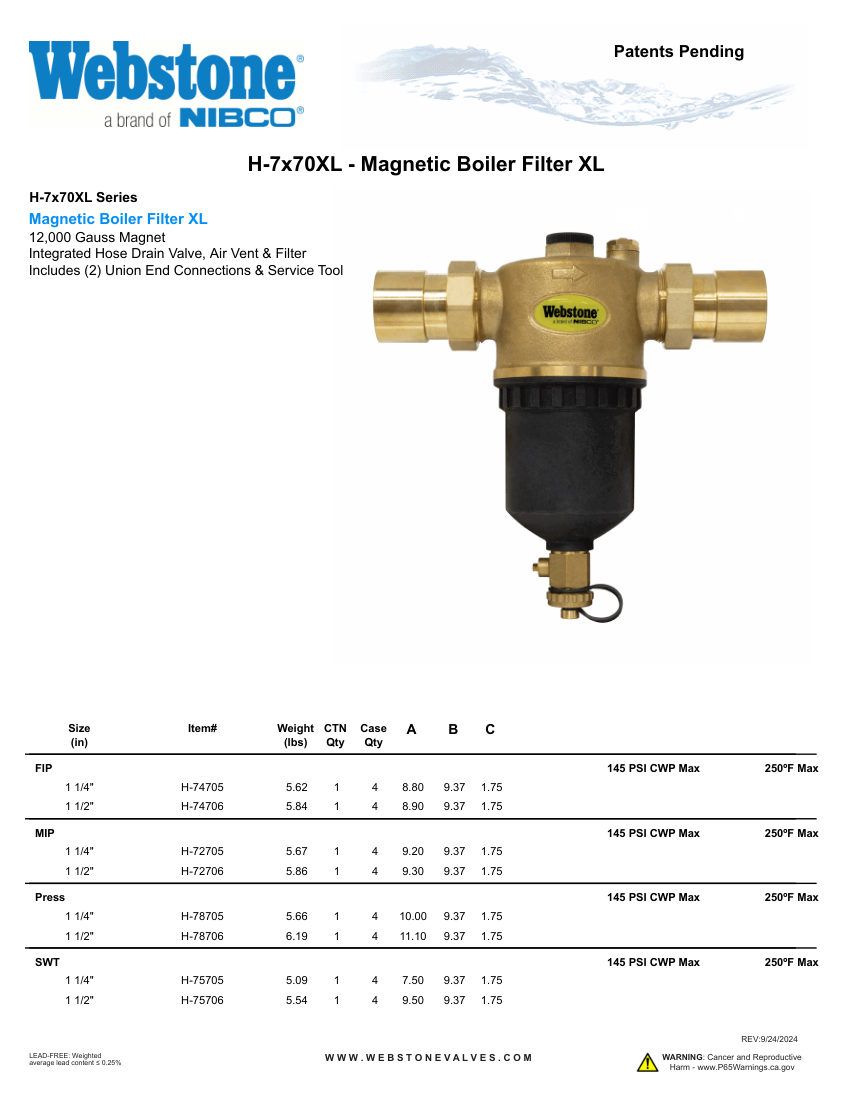

NIBCO H-7x70XL_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-7x70XL_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-7x70XL_ZSpec
DescriptionNIBCO Magnetic Boiler Filter (Boiler Filter). Model H-7x70XL. 12,000 Gauss Magnet; Integrated Hose Drain Valve, Air Vent & Filter; Includes (2) Union End Connections & Service Tool; Max Temperature 250°F. material: Brass, Stainless Steel, Plastic, Nickel Plated Brass
Connection size1 1/4" - 1 1/2"
End connectionFIP, MIP, Press, SWT
Pressure Rating145 PSI CWP Max
DimensionsA: 7.50-11.10 in, B: 9.37 in, C: 1.75 in
ComplianceANSI B1.20.1, ASME B16.18 Annex A, Lead-Free (≤ 0.25%).
