DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-8170

NIBCO Ball Valve and Copper Couplings (Press Fittings & Valves). Model H-8170W_XLC, PC6002XLC, PC600DSXLC. Full Port Forged Brass Ball Valve with Adjustable Packing Gland; Copper Couplings (Street and Standard) with EPDM O-rings; Max Operating Temperature 250°F; Lead-Free: Weighted average lead content ≤ 0.25%. material: Forged Brass, Copper, SS 304, PTFE

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-8170.pdfData sheet

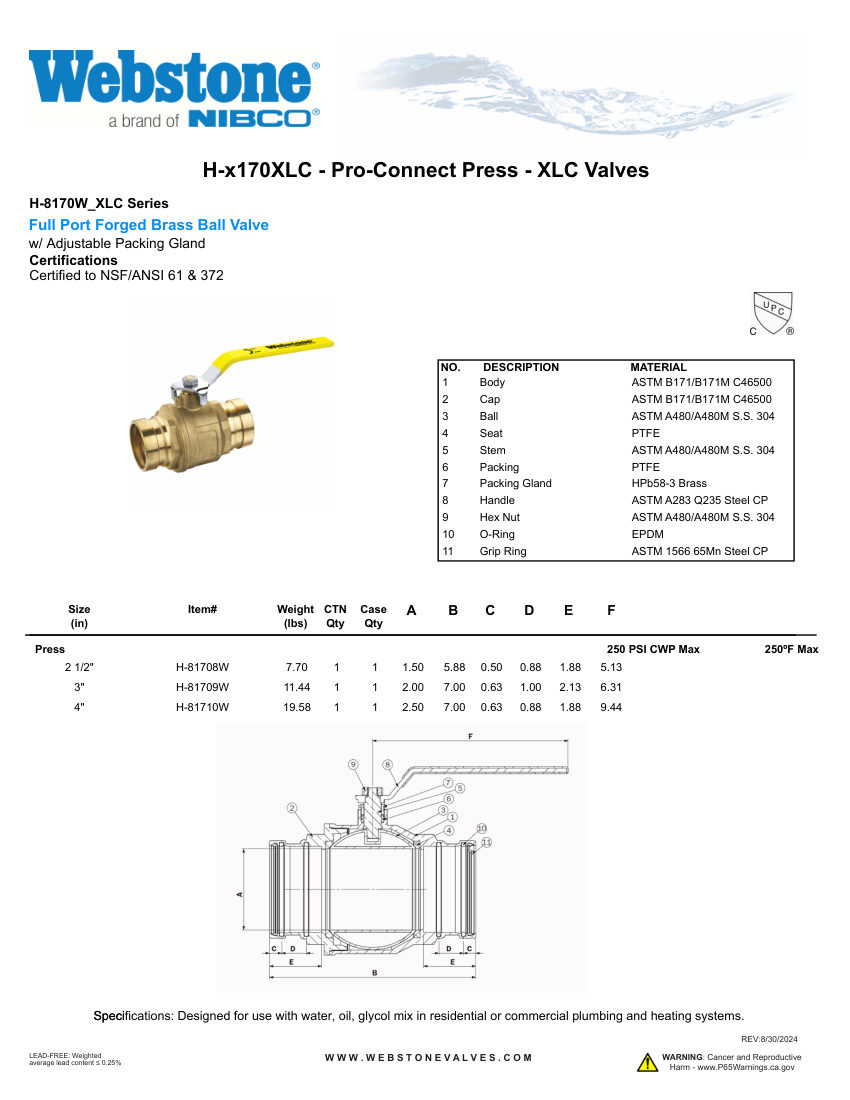

NIBCO H-8170 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-8170
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-8170
DescriptionNIBCO Ball Valve and Copper Couplings (Press Fittings & Valves). Model H-8170W_XLC, PC6002XLC, PC600DSXLC. Full Port Forged Brass Ball Valve with Adjustable Packing Gland; Copper Couplings (Street and Standard) with EPDM O-rings; Max Operating Temperature 250°F; Lead-Free: Weighted average lead content ≤ 0.25%. material: Forged Brass, Copper, SS 304, PTFE
Connection size2.5" - 4"
End connectionPress
Pressure Rating250-300 PSI CWP Max
FinishCP
ComplianceNSF/ANSI 61 & 372, PS117, ASME B16.51.

Also cataloged as: H-81708W, H-81709W, H-81710W, H-8170-8W, H-8170-9W, H-8170-10W
