NIBCO Multi-Port Tee (Pro-Pal). Model H-86x6. Max Temperature: 250°F
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- H-86x6_ZSpec
- Product type
- Plumbing/Valves
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | H-86x6_ZSpec |
|---|---|
| Description | NIBCO Multi-Port Tee (Pro-Pal). Model H-86x6. Max Temperature: 250°F |
| Body Material | Lead-Free DZR Brass; O-Ring Material: EPDM |
| Plug Material | Lead-Free DZR Brass. material: Lead-Free DZR Brass |
| Connection size | 3/4" x 1/2", 3/4" x 3/4", 1" x 3/4" |
| End connection | Press Run x PEX (F1807/F1960) |
| Pressure Rating | 250 PSI CWP |
| Dimensions | A: 8.09-8.25 in, B: 6.06-6.22 in |
| Compliance | NSF/ANSI 61, 372, 14, CSA B137.5. |

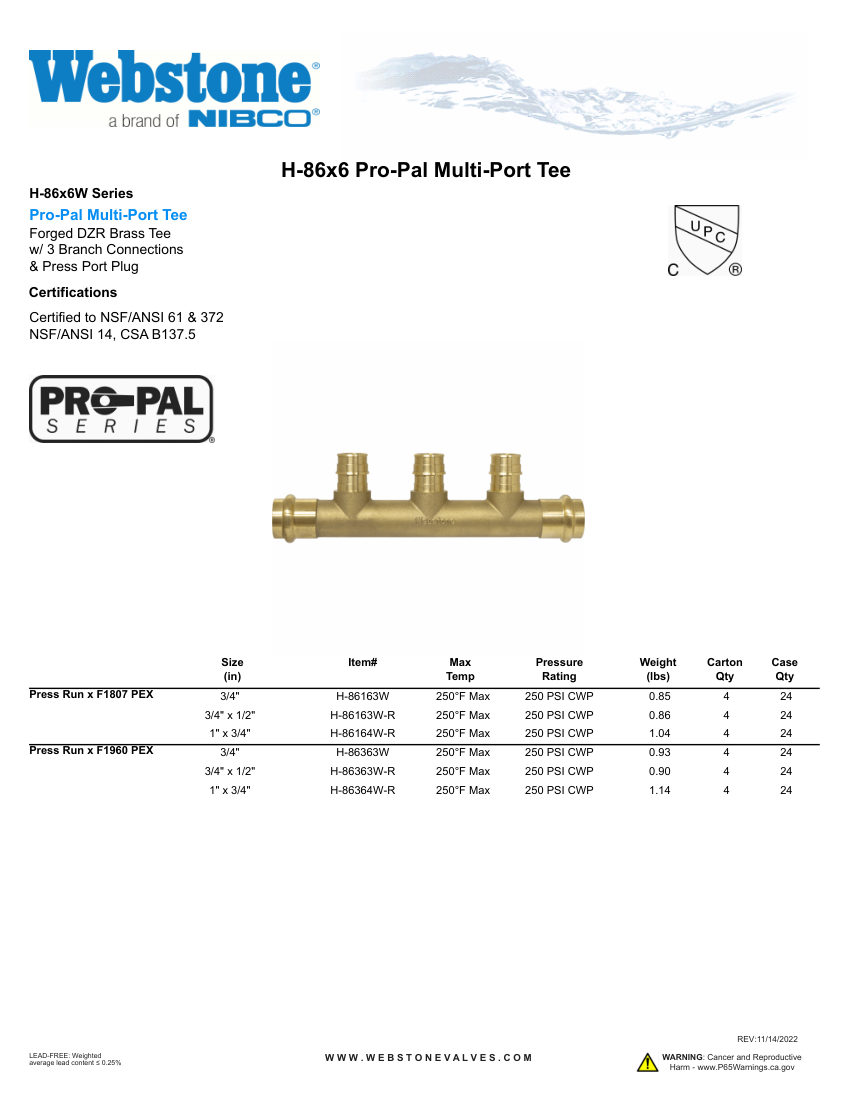

- Official cut sheet, indexed
