DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-86x7_ZSpec

NIBCO Multi-Port Tee w/ Drain (Valve). Model H-86x7 Series. Max Temperature: 250°F; Features Hi-Flow Hose Drain; Adjustable Packing Gland; Blowout Proof Stem. material: Lead-Free DZR Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-86x7_ZSpec.pdfData sheet

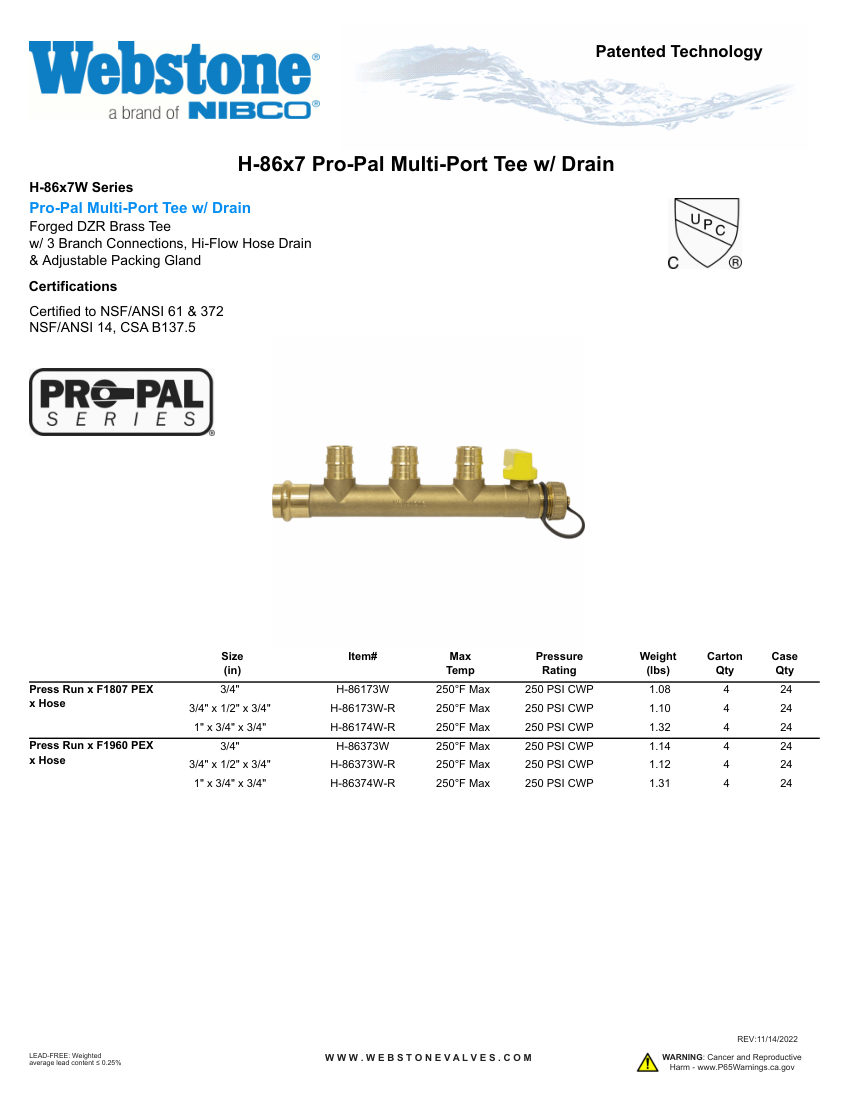

NIBCO H-86x7_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-86x7_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-86x7_ZSpec
DescriptionNIBCO Multi-Port Tee w/ Drain (Valve). Model H-86x7 Series. Max Temperature: 250°F; Features Hi-Flow Hose Drain; Adjustable Packing Gland; Blowout Proof Stem. material: Lead-Free DZR Brass
Connection size3/4" x 1/2" x 3/4" or 1" x 3/4" x 3/4"
End connectionPress Run x PEX x Hose
Pressure Rating250 PSI CWP
DimensionsA: 9.0-9.66 in, B: 7.76-8.76 in
ComplianceNSF/ANSI 61, 372, 14, CSA B137.5.
