NIBCO Hydro-Core Rotating Flange w/ Y Strainer (H-HCE-PUMP Series). Model H-FSTR4-54, H-FSTR5-55, H-RF4-54, H-RF5-55. Pressure Rating: 600 PSI CWP Max

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-FSTR4-54.pdfData sheet

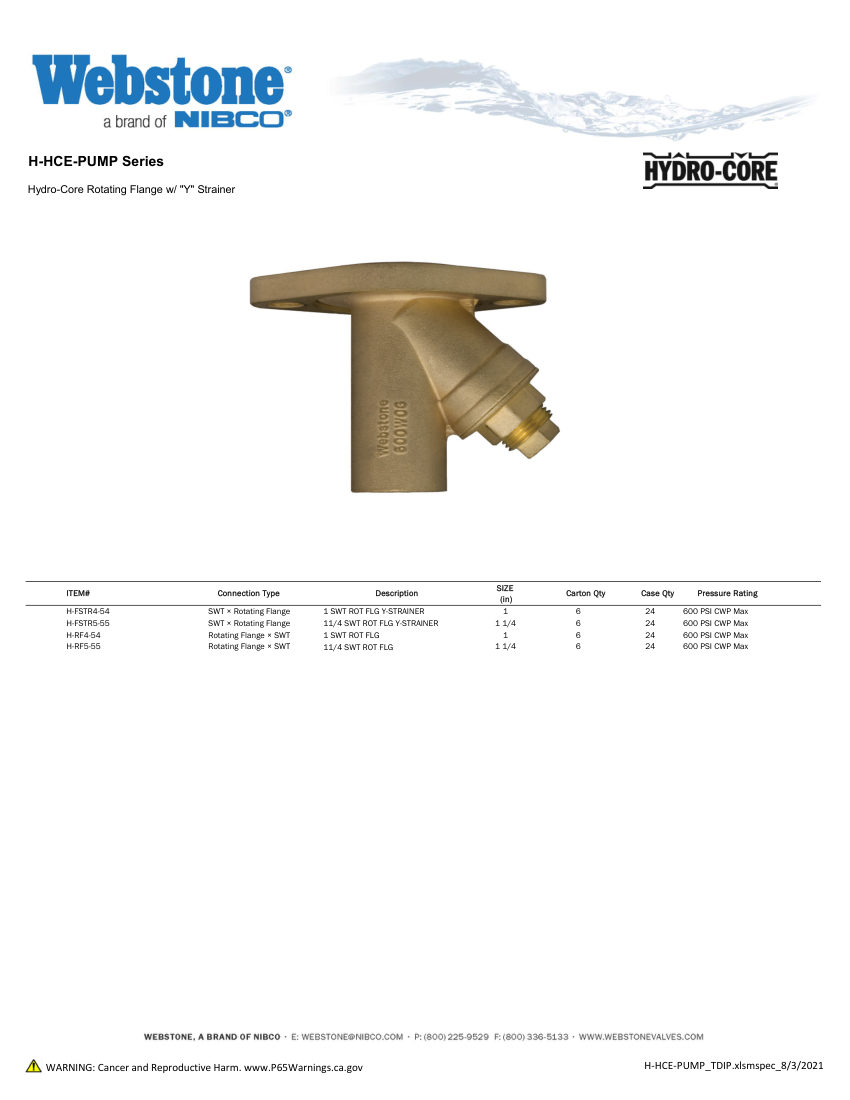

NIBCO H-FSTR4-54 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-FSTR4-54
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-FSTR4-54
DescriptionNIBCO Hydro-Core Rotating Flange w/ Y Strainer (H-HCE-PUMP Series). Model H-FSTR4-54, H-FSTR5-55, H-RF4-54, H-RF5-55. Pressure Rating: 600 PSI CWP Max
Available Sizes1 inch and 1 1/4 inch
Connection TypesSWT to Rotating Flange or Rotating Flange to SWT; Includes Y-Strainer in H-FSTR models. connectionSize: 1 in, 1 1/4 in
End connectionSWT × Rotating Flange, Rotating Flange × SWT
Pressure Rating600 PSI CWP Max.

Also cataloged as: H-FSTR5-55, H-RF4-54, H-RF5-55
