DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-G030_ZSpec

NIBCO Ball Valve (G-Series Add-a-Drain). Model H-G030W. Hi-Flow Forged DZR Brass Body; PTFE Seat and Packing; Adjustable Packing Gland; Includes Cap & Strap. material: Lead-Free DZR Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-G030_ZSpec.pdfData sheet

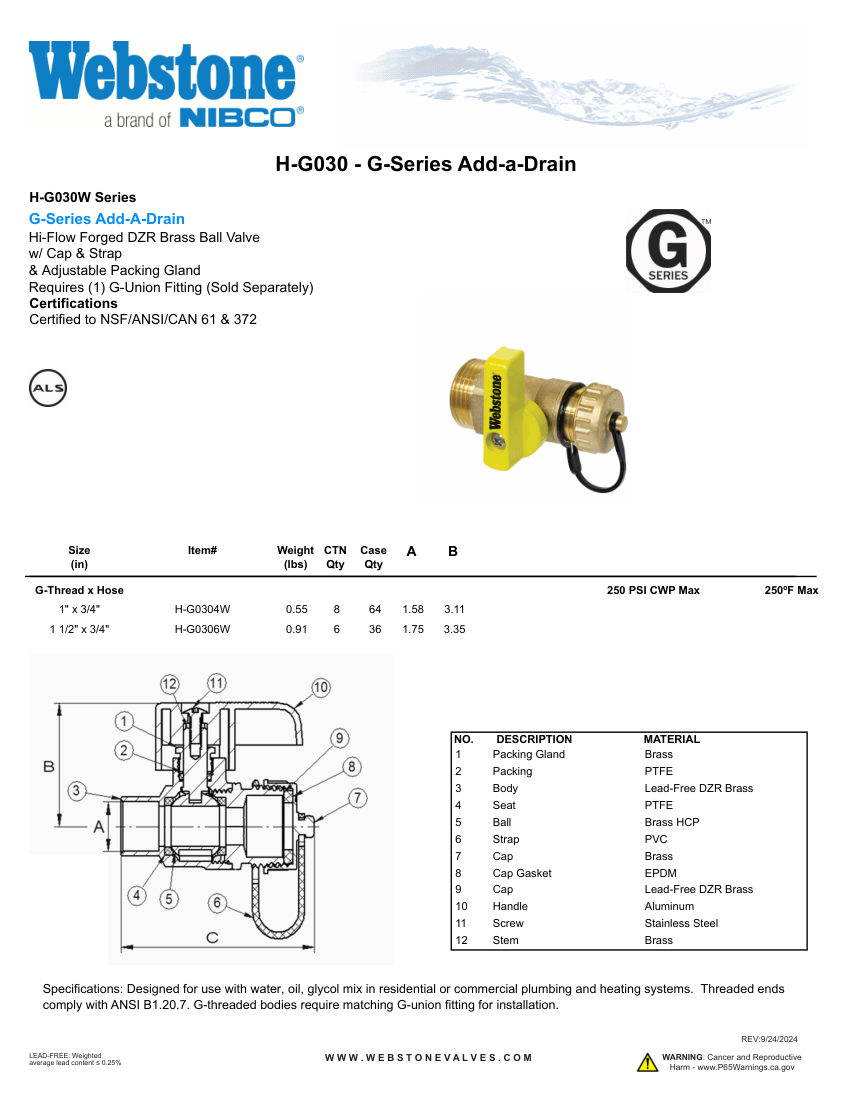

NIBCO H-G030_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-G030_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-G030_ZSpec
DescriptionNIBCO Ball Valve (G-Series Add-a-Drain). Model H-G030W. Hi-Flow Forged DZR Brass Body; PTFE Seat and Packing; Adjustable Packing Gland; Includes Cap & Strap. material: Lead-Free DZR Brass
Connection size1" x 3/4" or 1 1/2" x 3/4"
End connectionG-Thread x Hose
Pressure Rating250 PSI CWP Max
DimensionsA: 1.58-1.75 in, B: 3.11-3.35 in
ComplianceNSF/ANSI/CAN 61 & 372, ANSI B1.20.7.
