NIBCOH-G056_ZSpec
NIBCO Y-Strainer (G-Series). Model H-G056. Forged DZR Brass body with 20 Mesh Stainless Steel insert; Includes 1/2" Plugged NPT Port; Requires (2) G-Union Fittings (Sold Separately); Max Temperature 200°F. material: Lead-Free DZR Brass, Stainless Steel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- H-G056_ZSpec
- Product type
- Plumbing/Valves
- MasterFormat
- 22

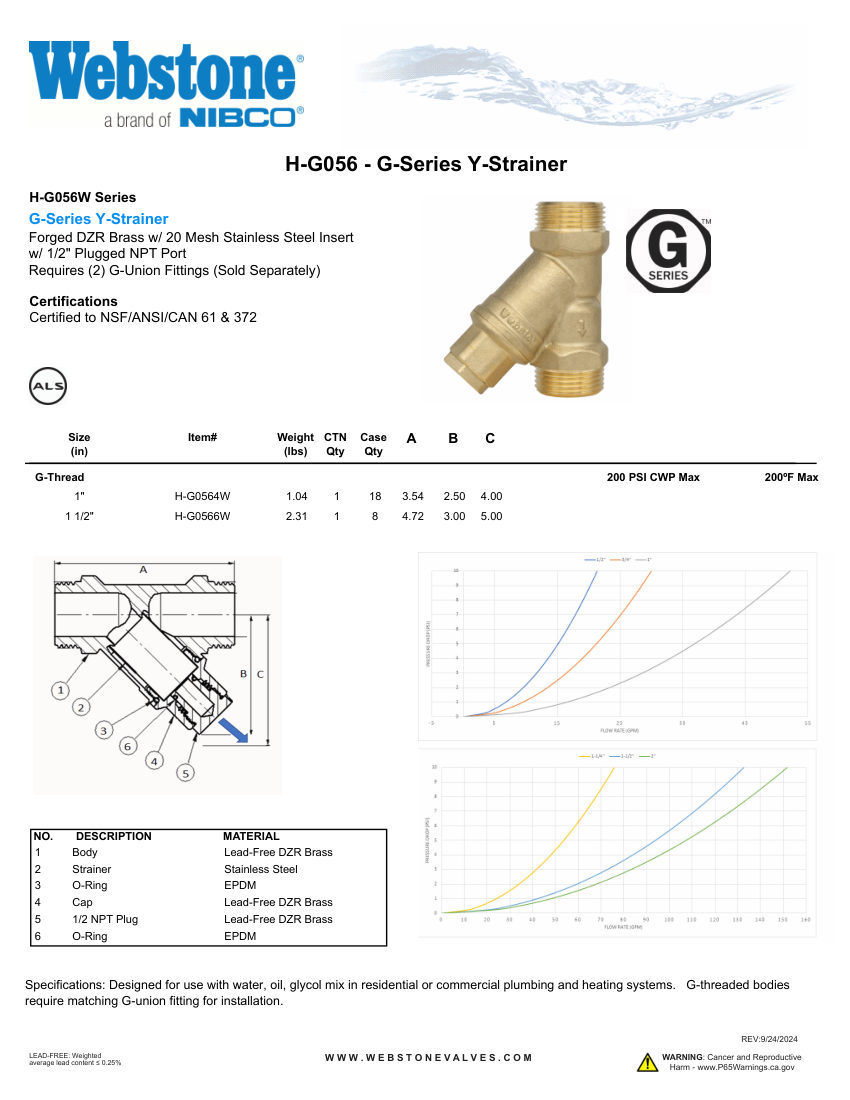

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | H-G056_ZSpec |
|---|---|
| Description | NIBCO Y-Strainer (G-Series). Model H-G056. Forged DZR Brass body with 20 Mesh Stainless Steel insert; Includes 1/2" Plugged NPT Port; Requires (2) G-Union Fittings (Sold Separately); Max Temperature 200°F. material: Lead-Free DZR Brass, Stainless Steel |
| Connection size | 1", 1 1/2" |
| End connection | G-Thread |
| Pressure Rating | 200 PSI CWP Max |
| Dimensions | A: 3.54-4.72 in, B: 2.50-3.00 in, C: 4.00-5.00 in |
| Compliance | NSF/ANSI/CAN 61 & 372. |
