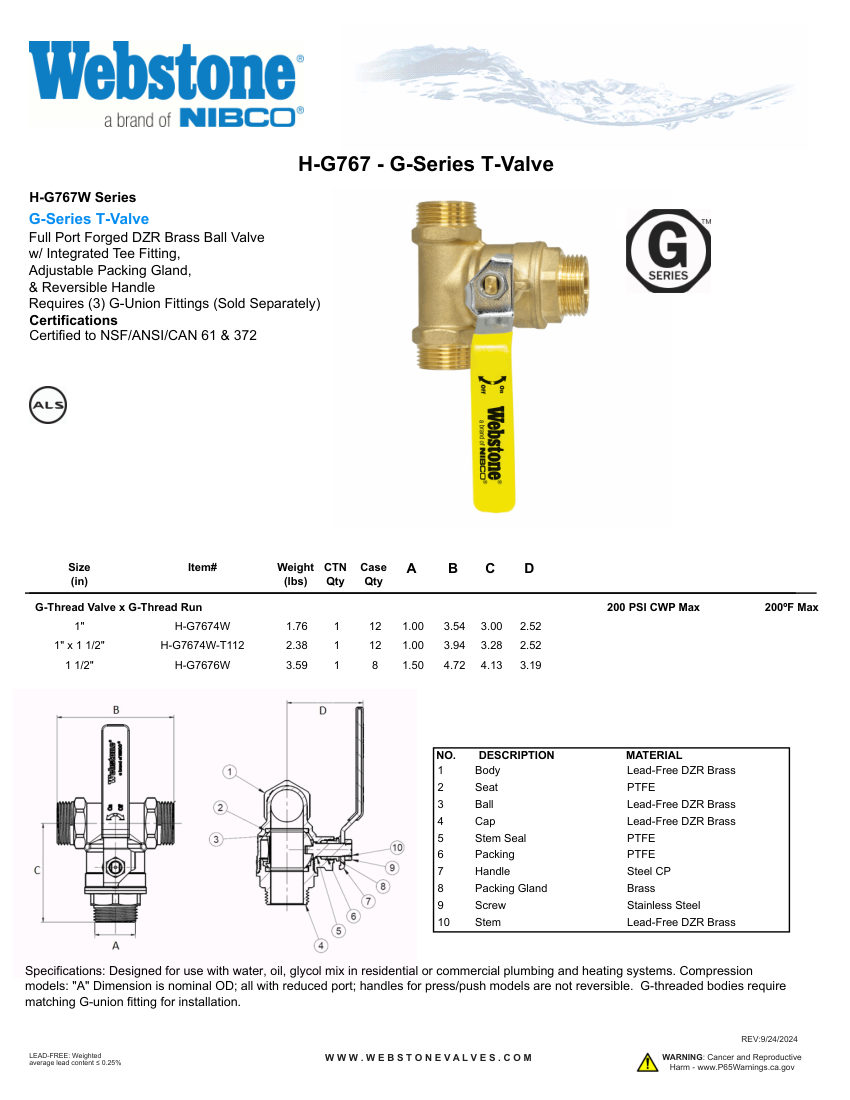

NIBCOH-G767_ZSpec
NIBCO Full Port Forged DZR Brass Ball Valve with Integrated Tee Fitting (G-Series T-Valve). Model H-G767. Integrated Tee Fitting; Adjustable Packing Gland; Reversible Handle; Requires (3) G-Union Fittings. material: Lead-Free DZR Brass
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- H-G767_ZSpec
- Product type
- Plumbing/Valves
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | H-G767_ZSpec |
|---|---|
| Description | NIBCO Full Port Forged DZR Brass Ball Valve with Integrated Tee Fitting (G-Series T-Valve). Model H-G767. Integrated Tee Fitting; Adjustable Packing Gland; Reversible Handle; Requires (3) G-Union Fittings. material: Lead-Free DZR Brass |
| Connection size | 1" to 1 1/2" |
| End connection | G-Thread |
| Pressure Rating | 200 PSI CWP Max |
| Dimensions | A: 1.00-1.50 in, B: 3.54-4.72 in, C: 3.00-4.13 in, D: 2.52-3.19 in |
| Compliance | NSF/ANSI/CAN 61 & 372. |
