NIBCOH-TMV-120_ZSpec
NIBCO Thermostatic Mixing Valve (Thermostatic Mixing Valves). Model H-TMV-120. Outlet Temperature Range 95º-120ºF; Max Operating Temperature 185ºF; Includes Integral Check Valves; DZR Brass G-Series Union Fittings. material: Forged Brass
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- H-TMV-120_ZSpec
- Product type
- Plumbing/Valves
- MasterFormat
- 22

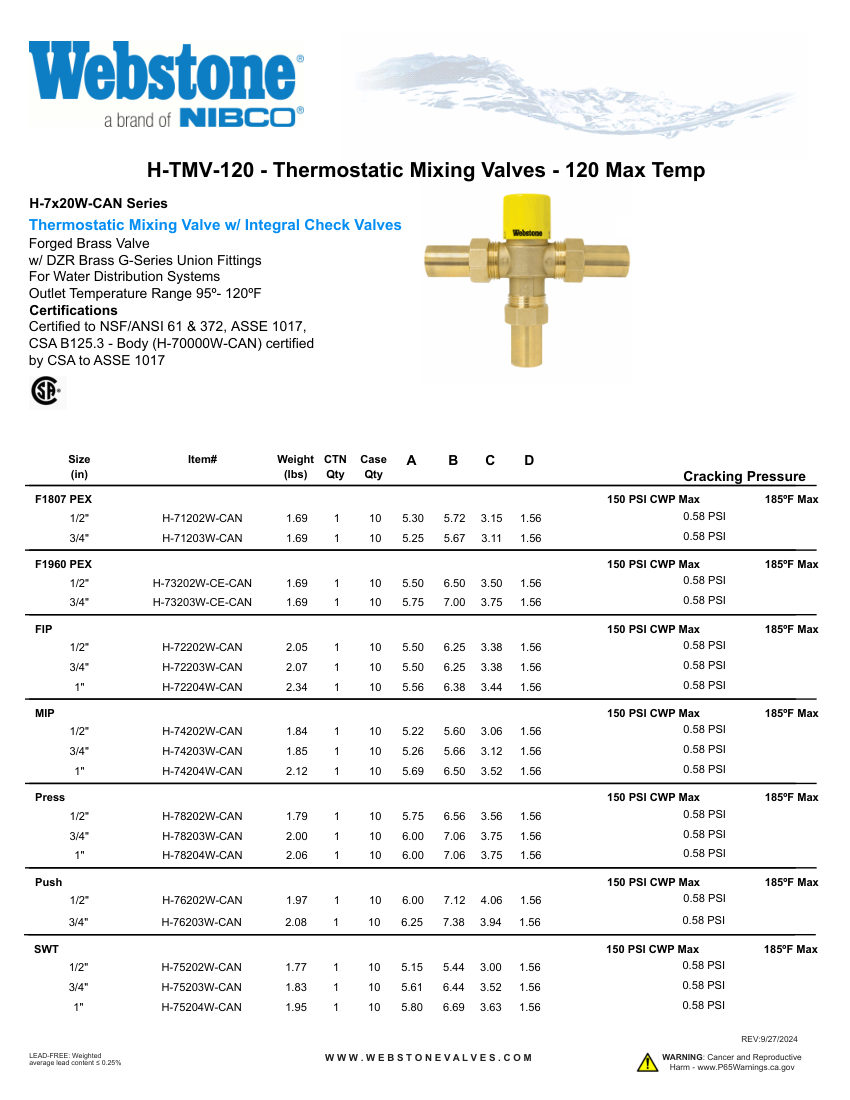

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | H-TMV-120_ZSpec |
|---|---|
| Description | NIBCO Thermostatic Mixing Valve (Thermostatic Mixing Valves). Model H-TMV-120. Outlet Temperature Range 95º-120ºF; Max Operating Temperature 185ºF; Includes Integral Check Valves; DZR Brass G-Series Union Fittings. material: Forged Brass |
| Connection size | 1/2" - 1" |
| End connection | PEX, FIP, MIP, Press, Push, SWT |
| Pressure Rating | 150 PSI CWP Max |
| Dimensions | A: 5.15-6.25 in, B: 5.44-7.38 in, C: 3.00-4.06 in, D: 1.56 in |
| Compliance | NSF/ANSI 61 & 372, ASSE 1017, CSA B125.3. |
