DIV 22 · PLUMBINGSPEC SHEETCUT SHEET INDEXED

NIBCOH TMV 176 Y TG_ZspecH-TMV-176-Y-TG

A Y-Pattern Thermostatic Mixing Valve featuring a dual scale temperature gauge. This in-line DZR brass valve includes an angled cold inlet, a locking handle, and three DZR brass G-Series unions with integral check valves on the inlets. Designed for residential or commercial plumbing and heating systems handling water, oil, or glycol mix.

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-TMV-176-Y-TG.pdfData sheet

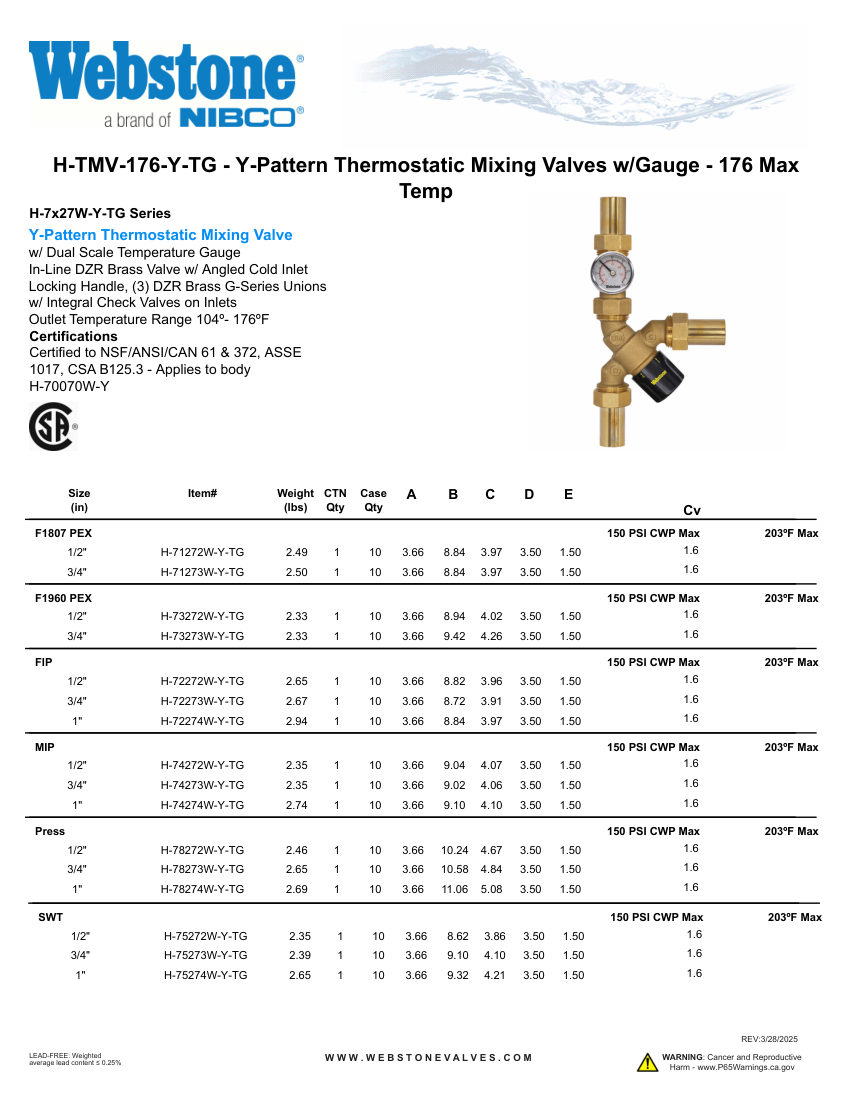

NIBCO H-TMV-176-Y-TG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-TMV-176-Y-TG
Product type
Spec Sheet
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-TMV-176-Y-TG
DescriptionA Y-Pattern Thermostatic Mixing Valve featuring a dual scale temperature gauge. This in-line DZR brass valve includes an angled cold inlet, a locking handle, and three DZR brass G-Series unions with integral check valves on the inlets. Designed for residential or commercial plumbing and heating systems handling water, oil, or glycol mix.

Also cataloged as: H-70070W-Y, H-71272W-Y-TG, H-71273W-Y-TG, H-73272W-Y-TG, H-73273W-Y-TG, H-72272W-Y-TG, H-72273W-Y-TG, H-72274W-Y-TG, H-74272W-Y-TG, H-74273W-Y-TG, H-74274W-Y-TG
