DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-TMV-230F Input_ZSpecH-TMV-230F

NIBCO Thermostatic Mixing Valve (Thermostatic Mixing Valves). Model H-TMV-230F. Max Input Temperature: 230°F

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-TMV-230F.pdfData sheet

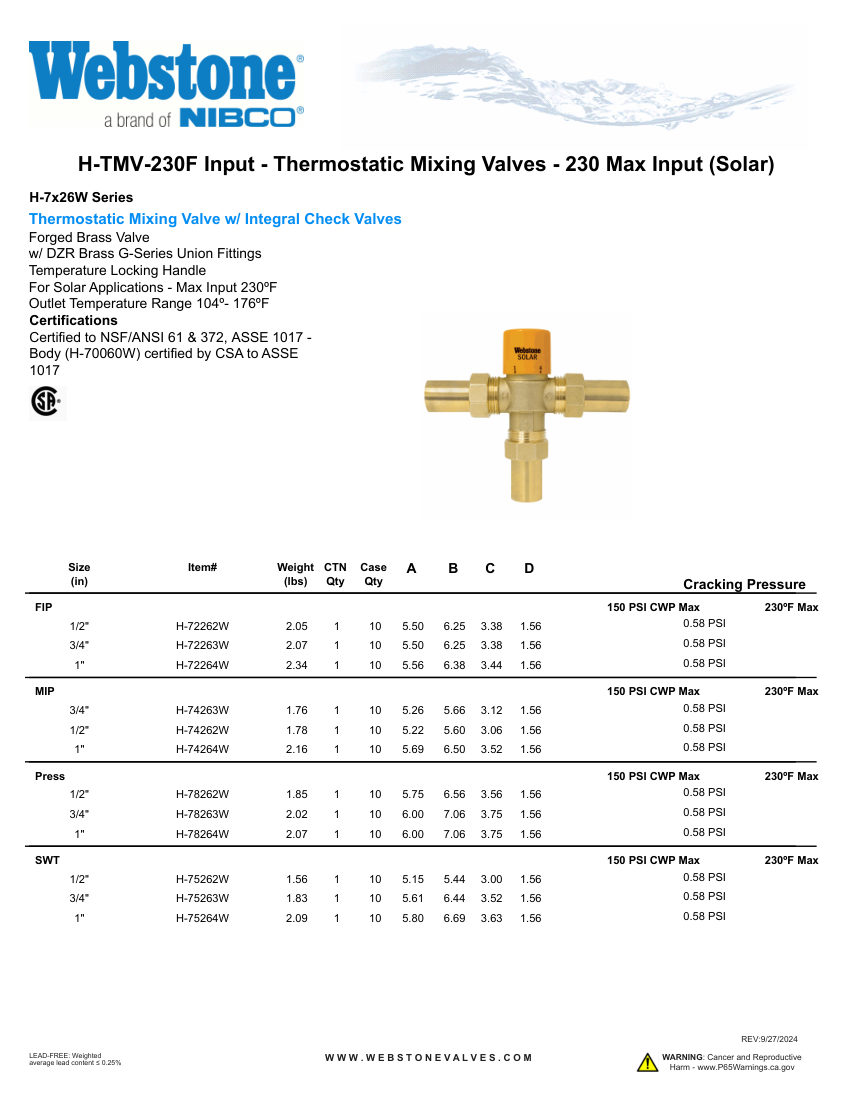

NIBCO H-TMV-230F cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-TMV-230F
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-TMV-230F
DescriptionNIBCO Thermostatic Mixing Valve (Thermostatic Mixing Valves). Model H-TMV-230F. Max Input Temperature: 230°F
Outlet Temperature Range104°F - 176°F; Includes Integral Check Valves; Lead-Free: Weighted average lead content ≤ 0.25%. material: Forged Brass
Connection size1/2", 3/4", 1"
End connectionFIP, MIP, Press, SWT
Pressure Rating150 PSI CWP Max
DimensionsA: 5.15-6.00 in, B: 5.44-7.06 in, C: 3.00-3.75 in, D: 1.56 in
ComplianceNSF/ANSI 61 & 372, ASSE 1017, CSA.
