DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-x030_ZSpec

NIBCO Hi-Flow Forged DZR Brass Ball Valve (Ball Valve). Model H-x030W Series. Max Temperature: 250°F; Lead-Free: Weighted average lead content ≤ 0.25%

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-x030_ZSpec.pdfData sheet

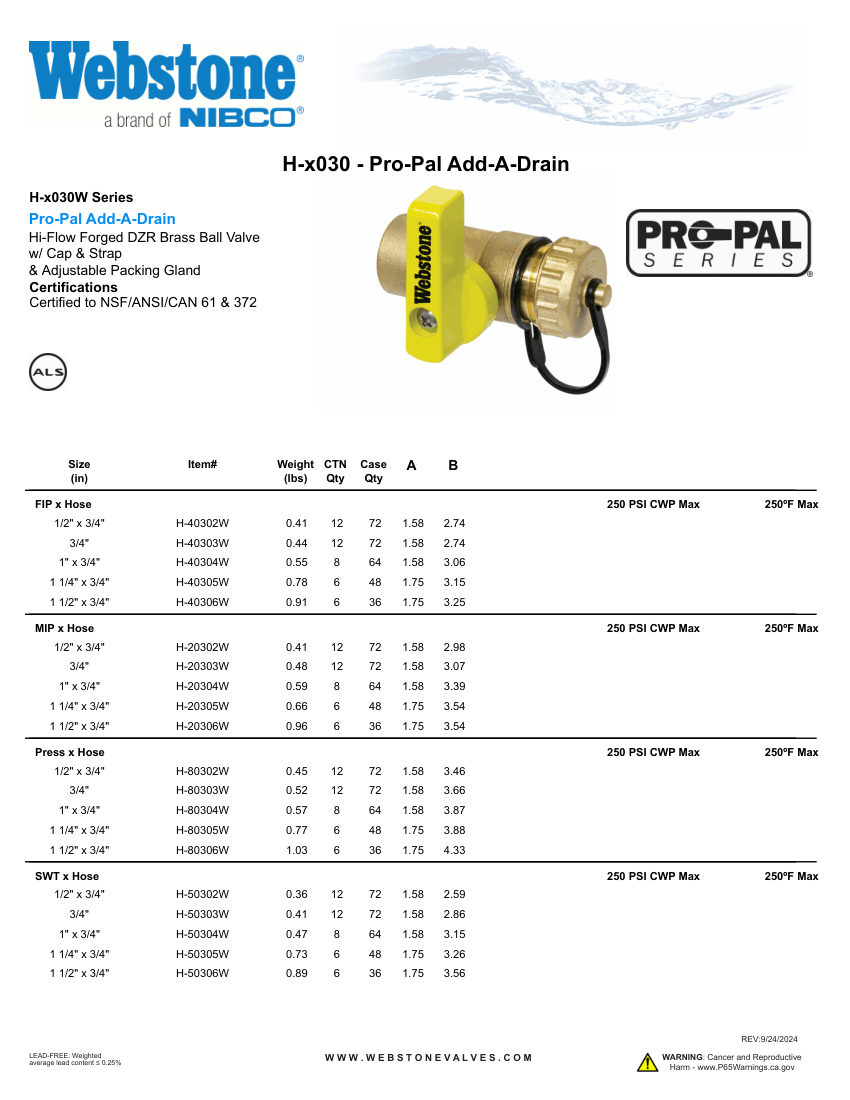

NIBCO H-x030_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-x030_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-x030_ZSpec
DescriptionNIBCO Hi-Flow Forged DZR Brass Ball Valve (Ball Valve). Model H-x030W Series. Max Temperature: 250°F; Lead-Free: Weighted average lead content ≤ 0.25%
FeaturesCap & Strap, Adjustable Packing Gland; Threaded ends comply with ANSI B1.20.1. material: Lead-Free DZR Brass
Connection size1/2" to 1 1/2" x 3/4" Hose
End connectionFIP, MIP, Press, SWT x Hose
Pressure Rating250 PSI CWP Max
DimensionsA: 1.58-1.75 in, B: 2.59-4.33 in
ComplianceNSF/ANSI/CAN 61 & 372, ANSI B1.20.1, ANSI B1.20.7.
