NIBCO Tankless Water Heater Service Valve Kit (Ball Valve). Model H-x042W-RB Series. Full Port Forged DZR Brass Ball Valves; Hot & Cold Set; Adjustable Packing Glands; Blowout Proof Stem. material: Lead Free DZR Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-x042-RB_ZSpec.pdfData sheet

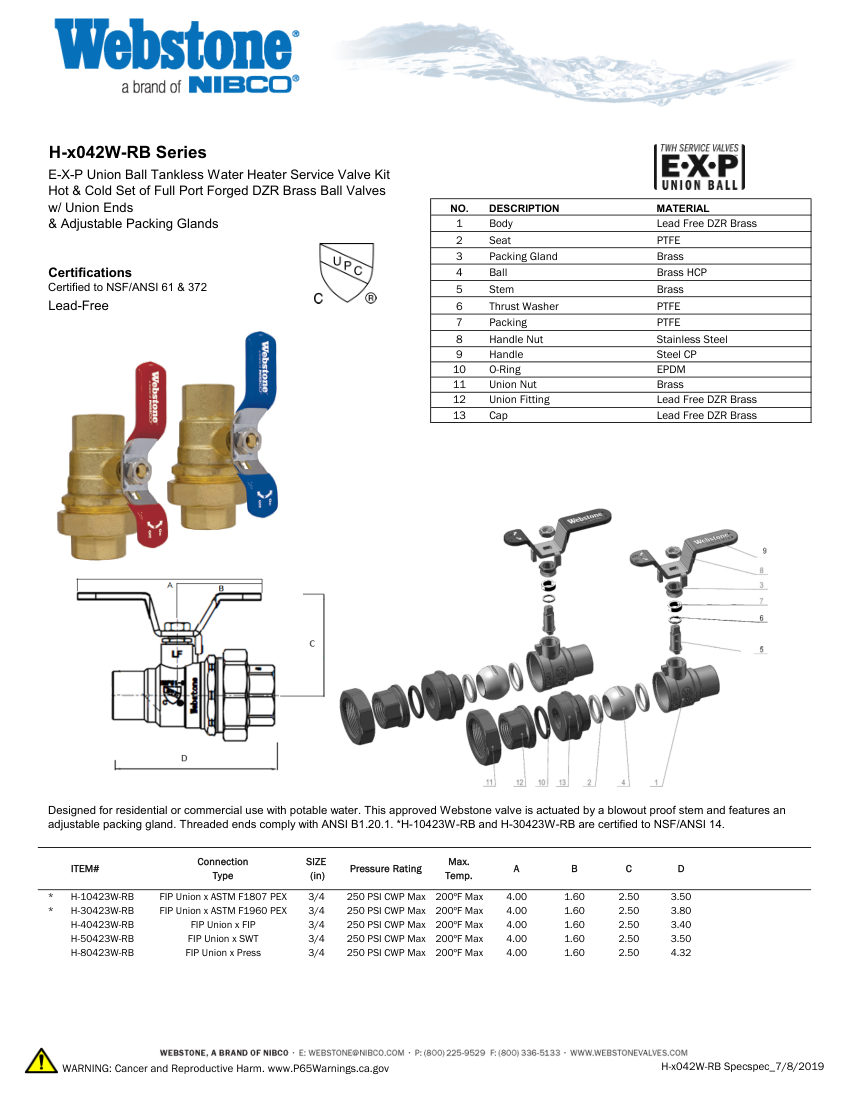

NIBCO H-x042-RB_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-x042-RB_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-x042-RB_ZSpec
DescriptionNIBCO Tankless Water Heater Service Valve Kit (Ball Valve). Model H-x042W-RB Series. Full Port Forged DZR Brass Ball Valves; Hot & Cold Set; Adjustable Packing Glands; Blowout Proof Stem. material: Lead Free DZR Brass
Connection size3/4 in
End connectionFIP Union x PEX/PEX/PEX/PEX/Press
Pressure Rating250 PSI CWP Max
DimensionsA: 4.00, B: 1.60, C: 2.50, D: 3.40-4.32
ComplianceNSF/ANSI 61, NSF/ANSI 372, Lead-Free, ANSI B1.20.1.
