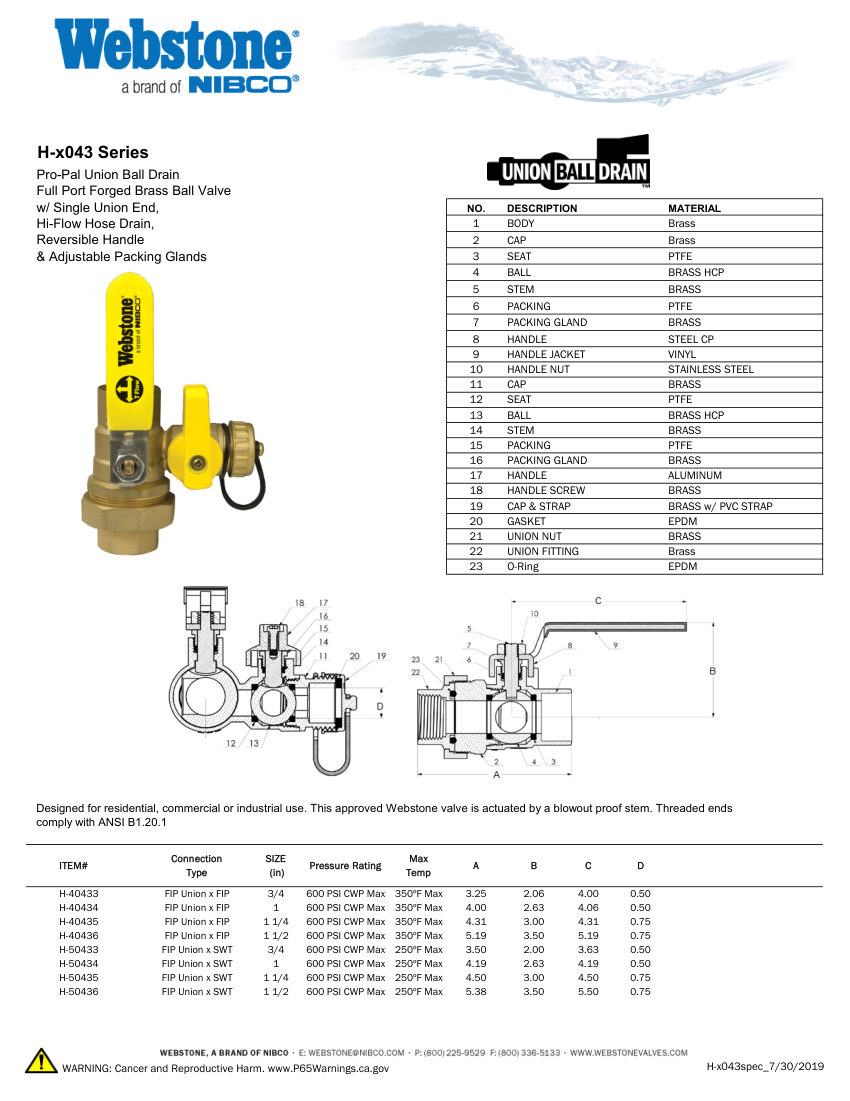

NIBCOH-x043_ZSpec
NIBCO Full Port Forged Brass Ball Valve (H-x043 Series). Model H-x043. Full port design with single union end; Hi-flow hose drain with reversible handle; Blowout-proof stem actuation; Max temperature 350°F (FIP) or 250°F (SWT). material: Forged Brass
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- H-x043_ZSpec
- Product type
- Plumbing/Valves
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | H-x043_ZSpec |
|---|---|
| Description | NIBCO Full Port Forged Brass Ball Valve (H-x043 Series). Model H-x043. Full port design with single union end; Hi-flow hose drain with reversible handle; Blowout-proof stem actuation; Max temperature 350°F (FIP) or 250°F (SWT). material: Forged Brass |
| Connection size | 3/4" to 1-1/2" |
| End connection | FIP Union x FIP / FIP Union x SWT |
| Pressure Rating | 600 PSI CWP Max |
| Dimensions | A: 3.25-5.38 in, B: 2.00-3.50 in, C: 3.63-5.50 in |
| Compliance | ANSI B1.20.1, NSF/ANSI 61 & 372 (W Series). |
