DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-x056_ZSpec

NIBCO Y-Strainer (Y-Strainers). Model H-x056W Series. 20 Mesh Stainless Steel Strainer; 1/2" Plugged NPT Port; Max Temperature 200°F; EPDM O-Rings. material: Lead-Free DZR Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-x056_ZSpec.pdfData sheet

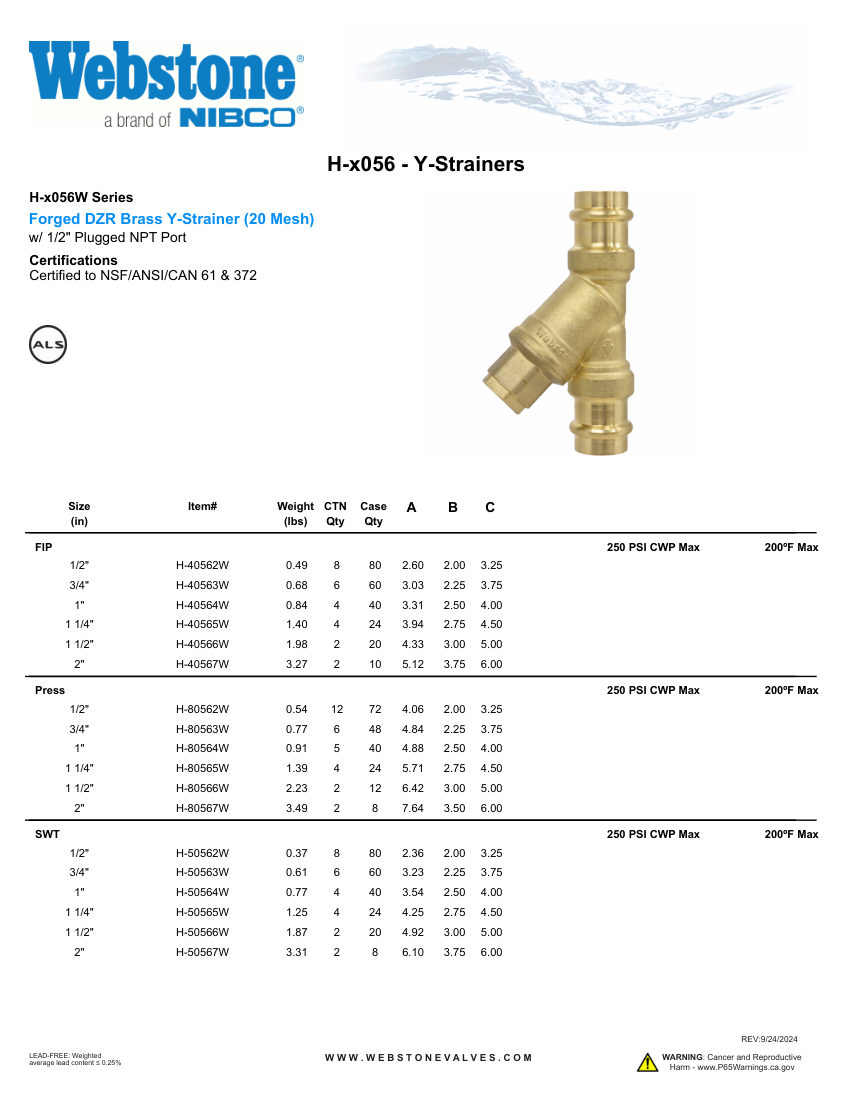

NIBCO H-x056_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-x056_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-x056_ZSpec
DescriptionNIBCO Y-Strainer (Y-Strainers). Model H-x056W Series. 20 Mesh Stainless Steel Strainer; 1/2" Plugged NPT Port; Max Temperature 200°F; EPDM O-Rings. material: Lead-Free DZR Brass
Connection size1/2" to 2"
End connectionFIP, Press, SWT
Pressure Rating250 PSI CWP Max
DimensionsA: 2.36-7.64 in, B: 2.00-3.75 in, C: 3.25-6.00 in
ComplianceNSF/ANSI/CAN 61 & 372, ANSI B1.20.1.
