NIBCO Ball Valve (H-x061 Series). Model H-40612, H-40613, H-40614, H-40615, H-40616, H-40617. Full Port Forged Brass Body; Hi-Flow Hose Drain; Reversible Handle; Adjustable Packing Glands. material: Forged Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-x061_ZSpec.pdfData sheet

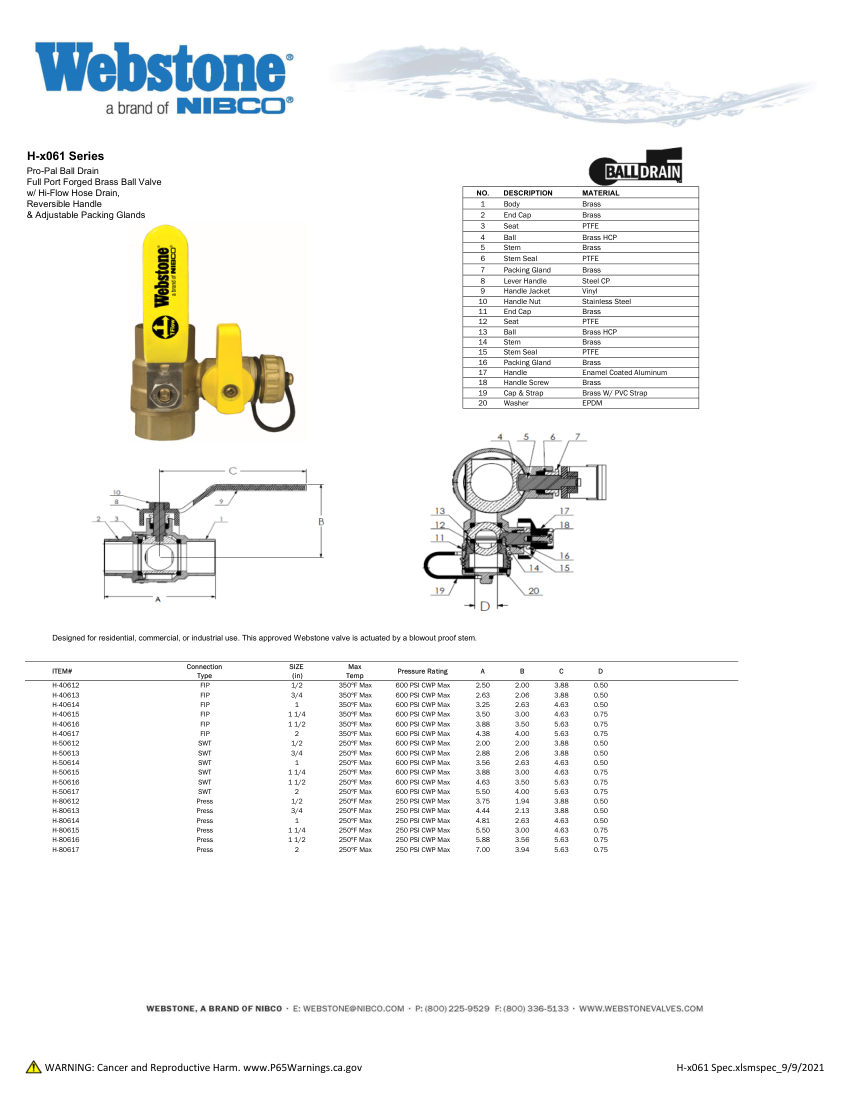

NIBCO H-x061_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-x061_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-x061_ZSpec
DescriptionNIBCO Ball Valve (H-x061 Series). Model H-40612, H-40613, H-40614, H-40615, H-40616, H-40617. Full Port Forged Brass Body; Hi-Flow Hose Drain; Reversible Handle; Adjustable Packing Glands. material: Forged Brass
Connection size1/2" to 2"
End connectionFIP
Pressure Rating600 PSI CWP Max
DimensionsVaries by size (e.g., 1/2": A=2.50, B=2.00, C=3.88, D=0.50)
ComplianceWebstone Approved.
