DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-x112_ZSpec

NIBCO Dielectric Union Ball Valve (H-x112W Series). Model H-x112W Series. Full Port Forged DZR Brass Body; Galvanized Steel Union End with Nylon Insulator Ring; Blowout Proof Stem with Dual Stem Seal Design; PTFE Seat and Packing. material: Lead-Free DZR Brass, Galvanized Steel, Nylon

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-x112_ZSpec.pdfData sheet

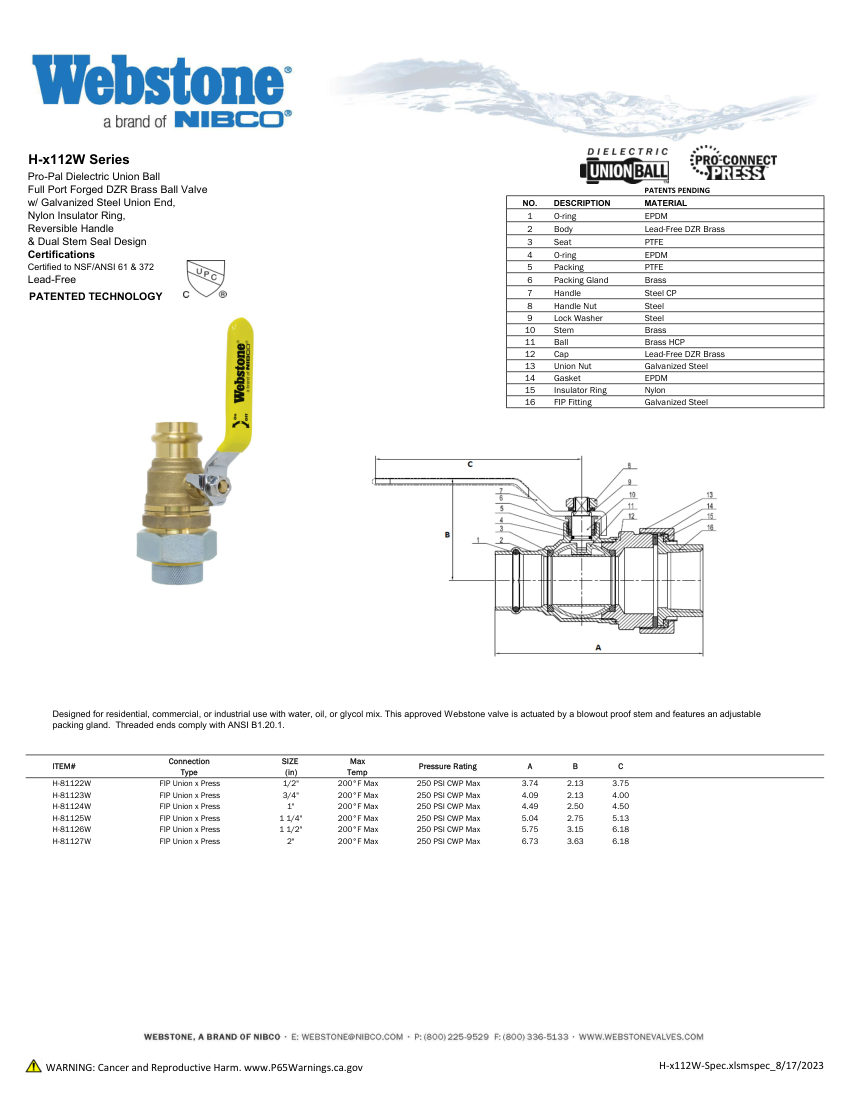

NIBCO H-x112_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-x112_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-x112_ZSpec
DescriptionNIBCO Dielectric Union Ball Valve (H-x112W Series). Model H-x112W Series. Full Port Forged DZR Brass Body; Galvanized Steel Union End with Nylon Insulator Ring; Blowout Proof Stem with Dual Stem Seal Design; PTFE Seat and Packing. material: Lead-Free DZR Brass, Galvanized Steel, Nylon
Connection size1/2" to 2"
End connectionFIP Union x Press
Pressure Rating250 PSI CWP Max
DimensionsVaries by size (e.g., 1/2": A=3.74, B=2.13, C=3.75)
ComplianceNSF/ANSI 61 & 372, Lead-Free, ANSI B1.20.1.
