DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

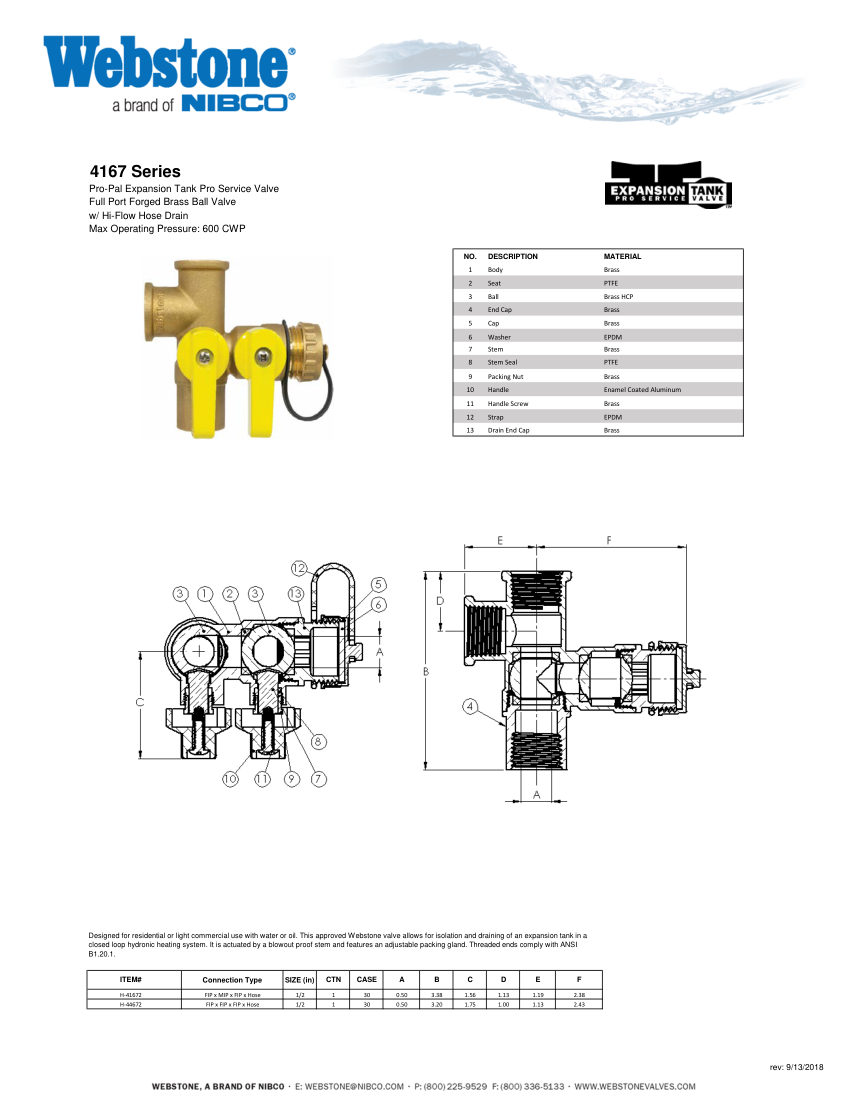

NIBCOH-x167_ZSpec

Name: NIBCO H-x167_ZSpec
Brand: NIBCO
SKU: H-x167_ZSpec

NIBCO Full Port Forged Brass Ball Valve (4167 Series). Model H-41672, H-44672. Max Operating Pressure: 600 CWP

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	H-x167_ZSpec
Description	NIBCO Full Port Forged Brass Ball Valve (4167 Series). Model H-41672, H-44672. Max Operating Pressure: 600 CWP
Body Material	Brass
Seat Material	PTFE
Handle Material	Enamel Coated Aluminum. material: Forged Brass
Connection size	1/2 in
End connection	FIP x MIP x FIP x Hose / FIP x FIP x FIP x Hose
Pressure Rating	600 CWP
Dimensions	A: 0.50, B: 3.38/3.20, C: 1.56/1.75, D: 1.13/1.00, E: 1.19/1.13, F: 2.38/2.43
Compliance	ANSI B1.20.1.
