NIBCOH-x168_ZSpec
NIBCO Ball Valve. Model 41685, 41686, 41687, 41698, 41699. Blowout proof stem design; Suitable for water, oil, or gas; Commercial or industrial use; PTFE seat and FKM stem seal. material: Brass Body, Brass HCP Ball, PTFE Seat, FKM Stem Seal, Steel CP Handle
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- H-x168_ZSpec
- Product type
- Plumbing/Valves
- MasterFormat
- 22

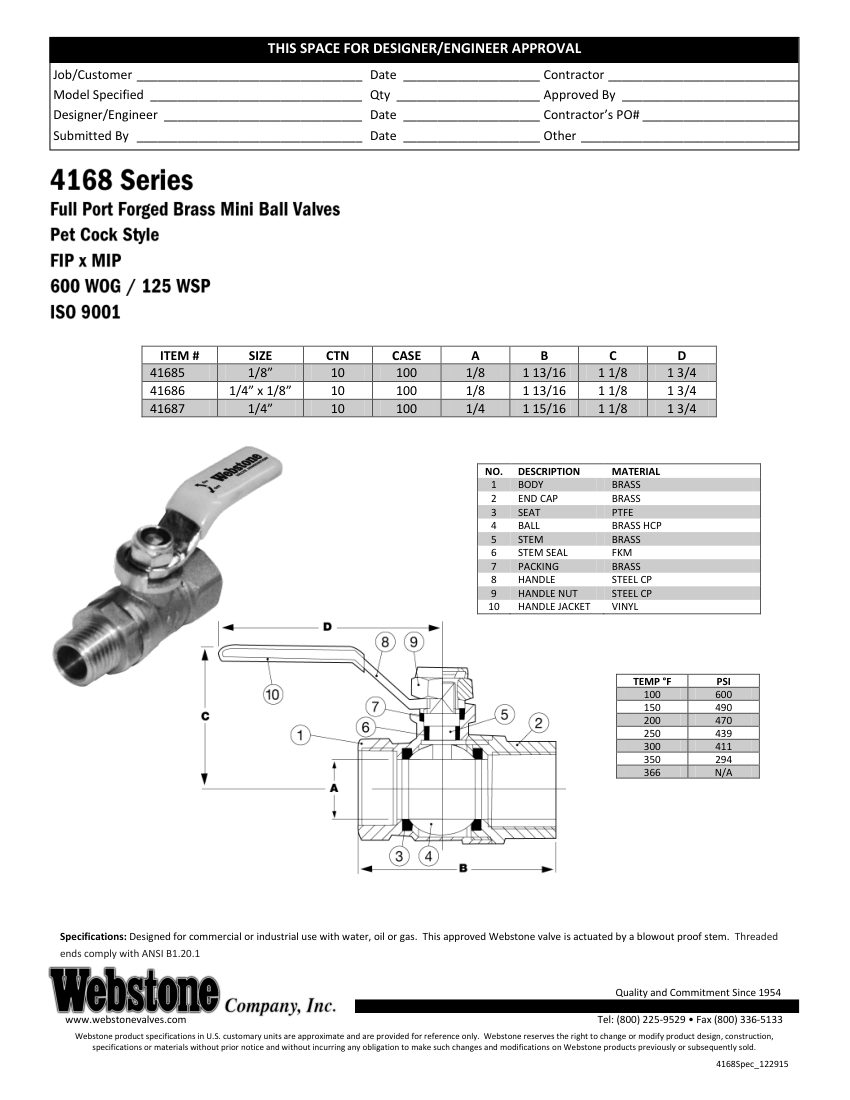

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | H-x168_ZSpec |
|---|---|
| Description | NIBCO Ball Valve. Model 41685, 41686, 41687, 41698, 41699. Blowout proof stem design; Suitable for water, oil, or gas; Commercial or industrial use; PTFE seat and FKM stem seal. material: Brass Body, Brass HCP Ball, PTFE Seat, FKM Stem Seal, Steel CP Handle |
| Connection size | 1/8", 1/4", 1/4" x 1/8", 1/4" x 1/4" |
| End connection | Threaded (ANSI B1.20.1) |
| Pressure Rating | 600 PSI @ 100°F |
| Finish | Chrome Plated Handle |
| Dimensions | A: 1/8"-1/4", B: 1 5/8"-1 15/16", C: 1 1/8", D: 1 3/4". |
