DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-x170XLC_Zspec

NIBCO Full Port Forged Brass Ball Valve (Ball Valve). Model H-8170W_XLC Series. Full port design; Adjustable packing gland; Max temperature 250°F; Suitable for water, oil, and glycol mix. material: Forged Brass (ASTM B171/B171M C46500), SS 304 Ball/Stem, PTFE Seat/Packing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-x170XLC_Zspec.pdfData sheet

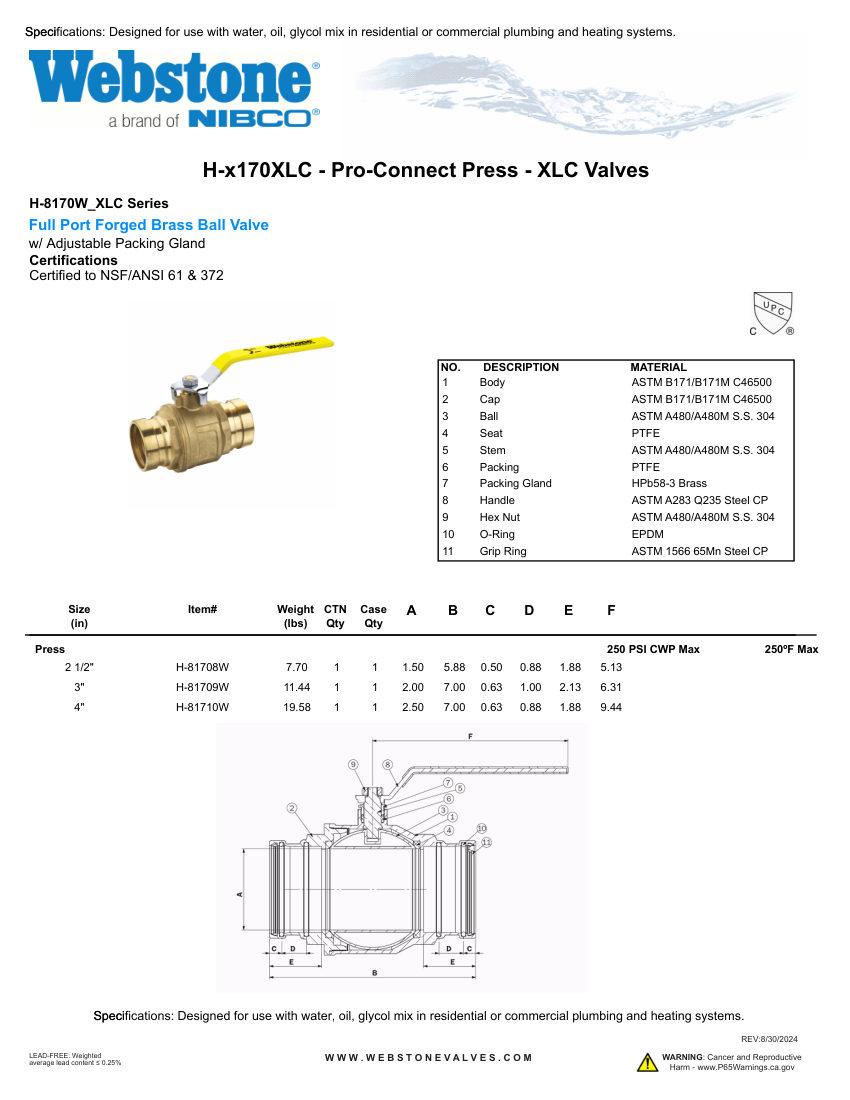

NIBCO H-x170XLC_Zspec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-x170XLC_Zspec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-x170XLC_Zspec
DescriptionNIBCO Full Port Forged Brass Ball Valve (Ball Valve). Model H-8170W_XLC Series. Full port design; Adjustable packing gland; Max temperature 250°F; Suitable for water, oil, and glycol mix. material: Forged Brass (ASTM B171/B171M C46500), SS 304 Ball/Stem, PTFE Seat/Packing
Connection size2 1/2" - 4"
End connectionPress
Pressure Rating250 PSI CWP Max
DimensionsSee size table (e.g., 2 1/2": A=1.50, B=5.88)
ComplianceNSF/ANSI 61 & 372, Lead-Free (≤ 0.25%).
