DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-x265-BUBV-VR_ZSpec

NIBCO Water Heater Service Valve Kit. Model H-x265-BUBV-VR. Includes Water Heater Supply Valve, Union Ball Valve, and Vacuum Relief Valve; Maximum operating temperature 180°F; Lead-free with weighted average lead content ≤ 0.25%; Certified to NSF/ANSI/CAN 61 & 372. material: Lead-Free

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-x265-BUBV-VR_ZSpec.pdfData sheet

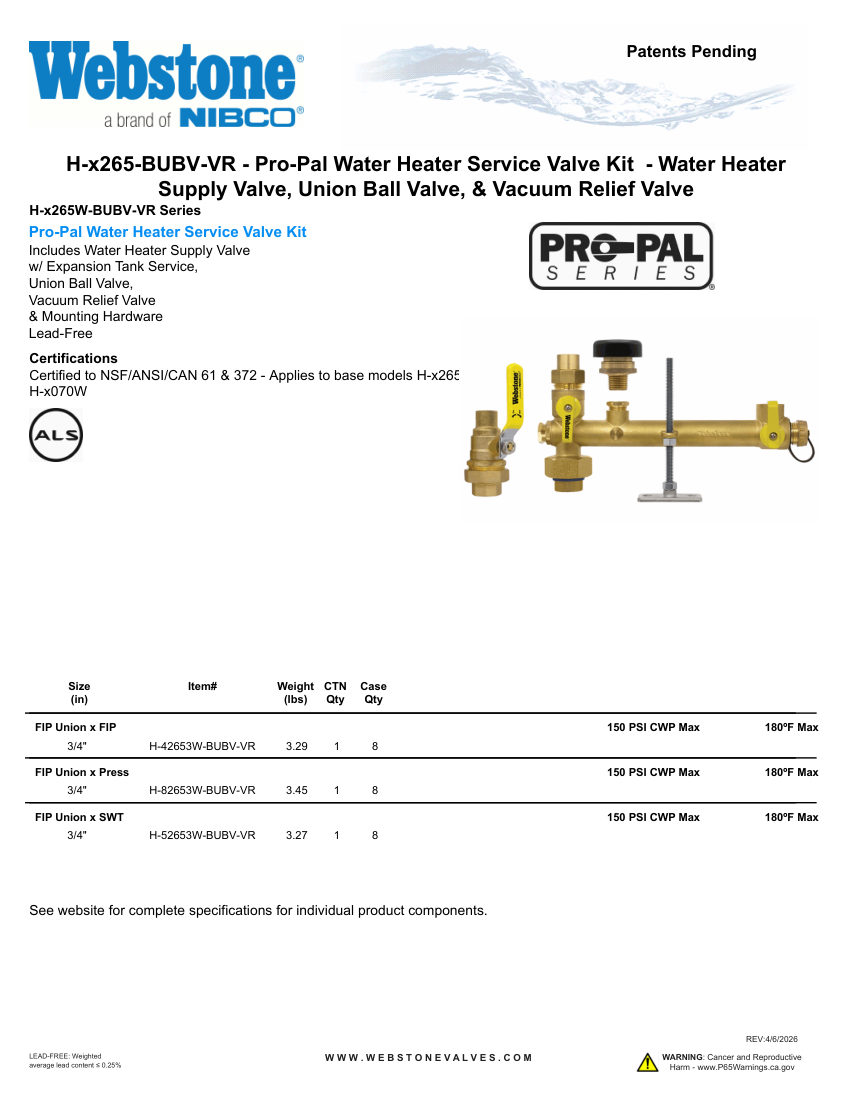

NIBCO H-x265-BUBV-VR_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-x265-BUBV-VR_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-x265-BUBV-VR_ZSpec
DescriptionNIBCO Water Heater Service Valve Kit. Model H-x265-BUBV-VR. Includes Water Heater Supply Valve, Union Ball Valve, and Vacuum Relief Valve; Maximum operating temperature 180°F; Lead-free with weighted average lead content ≤ 0.25%; Certified to NSF/ANSI/CAN 61 & 372. material: Lead-Free
Connection size3/4"
End connectionFIP Union x FIP, FIP Union x Press, FIP Union x SWT
Pressure Rating150 PSI CWP Max
MountingIncludes Mounting Hardware
ComplianceNSF/ANSI/CAN 61 & 372.
