DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-x266-VR_ZSpec

NIBCO Ball Valve with Vacuum Relief Valve (Water Heater Supply Valves). Model H-x266-VR Series. Full Port DZR Brass Ball Valve; Includes 1/2" FIP Vacuum Relief Valve Port; Maximum Temperature 180°F; Threaded ends comply with ANSI B1.20.1. material: Lead-Free DZR Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-x266-VR_ZSpec.pdfData sheet

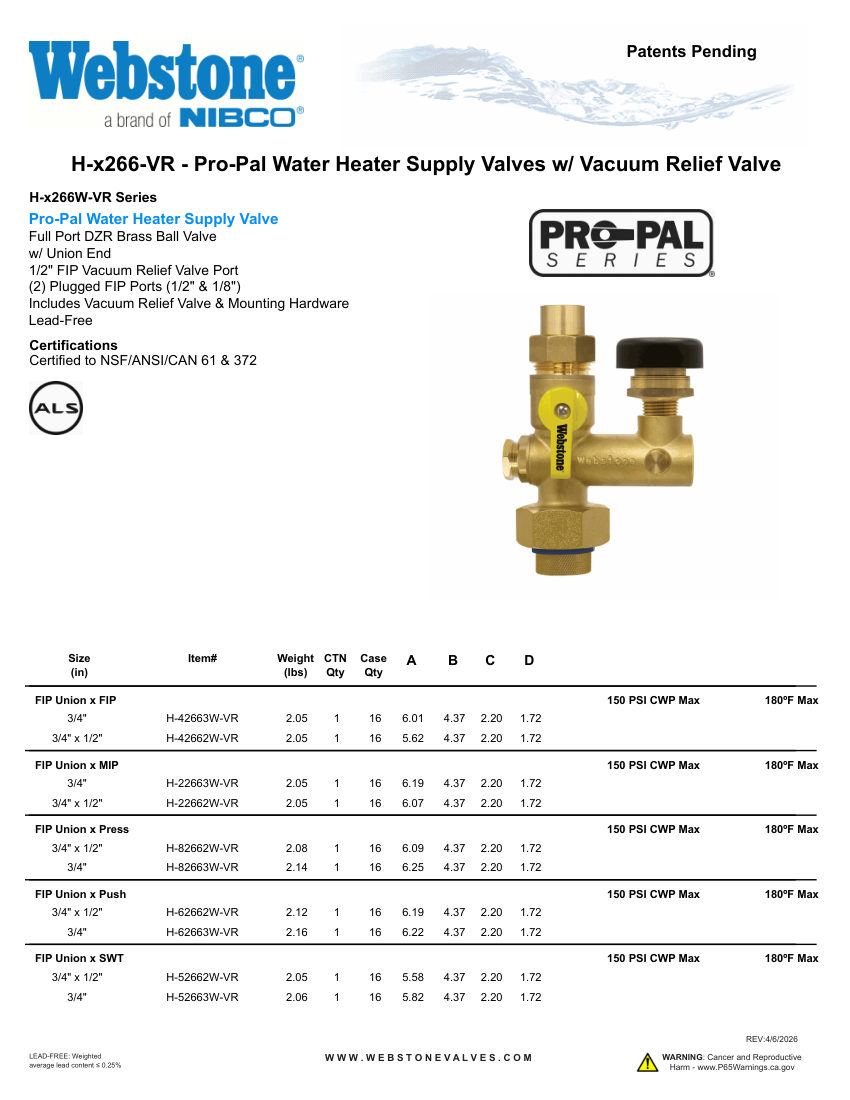

NIBCO H-x266-VR_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-x266-VR_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-x266-VR_ZSpec
DescriptionNIBCO Ball Valve with Vacuum Relief Valve (Water Heater Supply Valves). Model H-x266-VR Series. Full Port DZR Brass Ball Valve; Includes 1/2" FIP Vacuum Relief Valve Port; Maximum Temperature 180°F; Threaded ends comply with ANSI B1.20.1. material: Lead-Free DZR Brass
Connection size3/4" x 1/2" or 3/4"
End connectionFIP Union x FIP, MIP, Press, Push, or SWT
Pressure Rating150 PSI CWP Max
MountingIncludes Mounting Hardware
DimensionsA: 5.58-6.25 in, B: 4.37 in, C: 2.20 in, D: 1.72 in.
