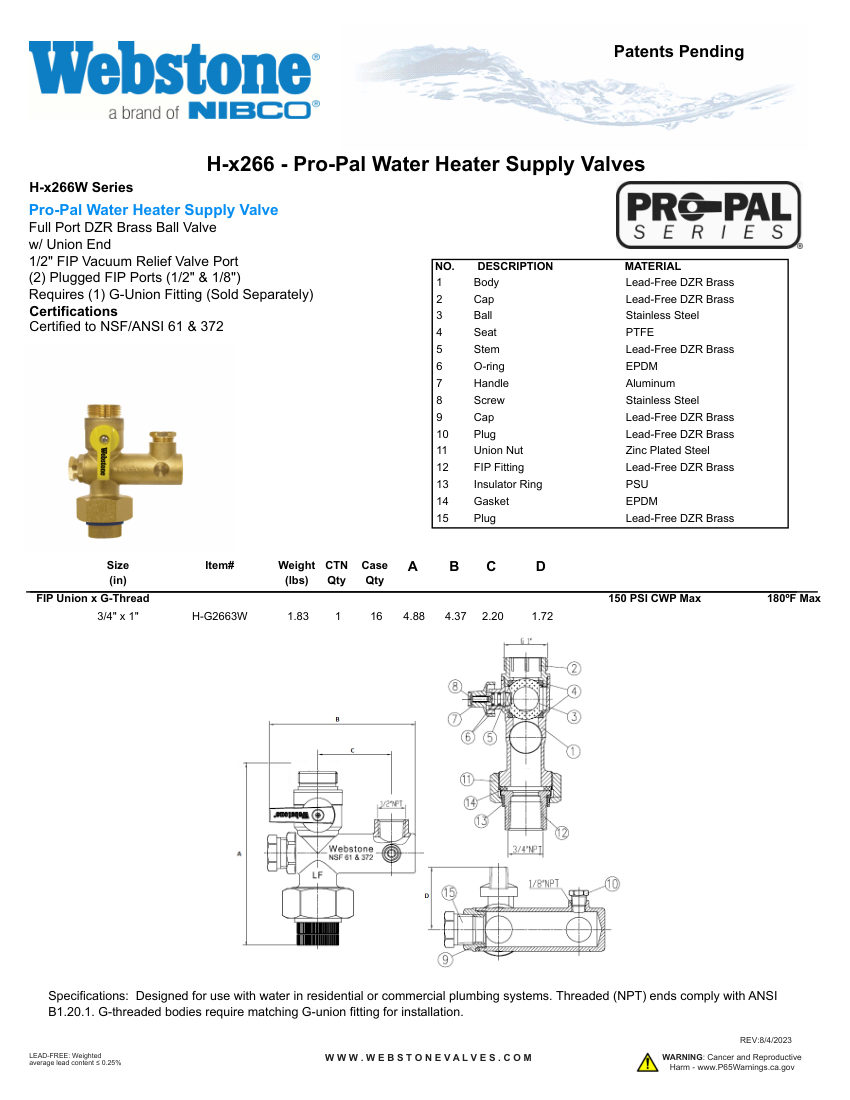

NIBCOH-x266_ZSpec
NIBCO Water Heater Supply Valve (Ball Valve). Model H-G2663W. Full Port DZR Brass Ball Valve; Includes 1/2" FIP Vacuum Relief Valve Port; Requires separate G-Union Fitting; Max Temperature 180°F. material: Lead-Free DZR Brass
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- H-x266_ZSpec
- Product type
- Plumbing/Valves
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | H-x266_ZSpec |
|---|---|
| Description | NIBCO Water Heater Supply Valve (Ball Valve). Model H-G2663W. Full Port DZR Brass Ball Valve; Includes 1/2" FIP Vacuum Relief Valve Port; Requires separate G-Union Fitting; Max Temperature 180°F. material: Lead-Free DZR Brass |
| Connection size | 3/4" x 1" |
| End connection | FIP Union x G-Thread |
| Pressure Rating | 150 PSI CWP Max |
| Dimensions | A: 4.88, B: 4.37, C: 2.20, D: 1.72 |
| Compliance | NSF/ANSI 61 & 372, ANSI B1.20.1. |
