DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-x267_ZSpec

NIBCO T-Valve (Ball Valve). Model H-x267W Series. Full Port Forged DZR Brass Body; Integrated Tee Fitting; Adjustable Packing Gland; Reversible Handle (except press/push models). material: Lead-Free DZR Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-x267_ZSpec.pdfData sheet

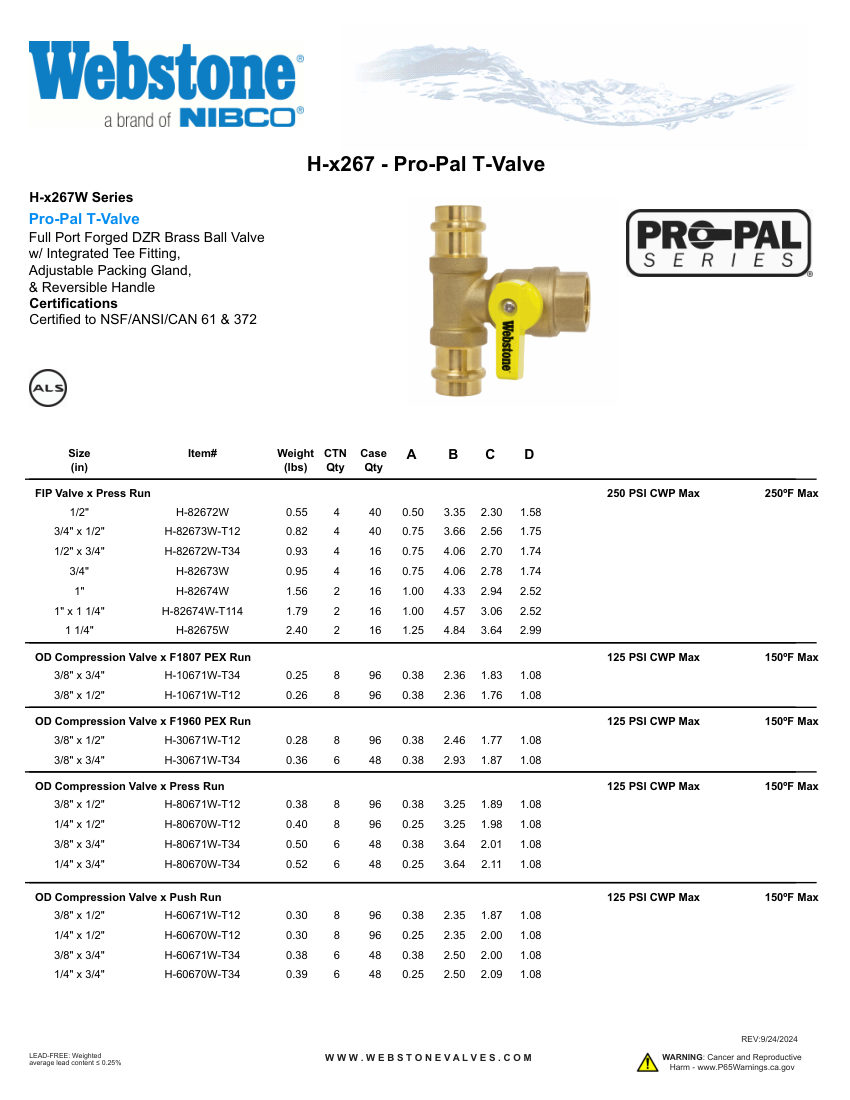

NIBCO H-x267_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-x267_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-x267_ZSpec
DescriptionNIBCO T-Valve (Ball Valve). Model H-x267W Series. Full Port Forged DZR Brass Body; Integrated Tee Fitting; Adjustable Packing Gland; Reversible Handle (except press/push models). material: Lead-Free DZR Brass
Connection size1/4" to 1 1/4"
End connectionFIP, OD Compression, Press, Push
Pressure Rating250 PSI CWP Max (FIP), 125 PSI CWP Max (Compression/Press/Push)
DimensionsVaries by size (e.g., 1/2" FIP: A=0.50, B=3.35, C=2.30, D=1.58)
ComplianceNSF/ANSI/CAN 61 & 372, ANSI B1.20.1.
