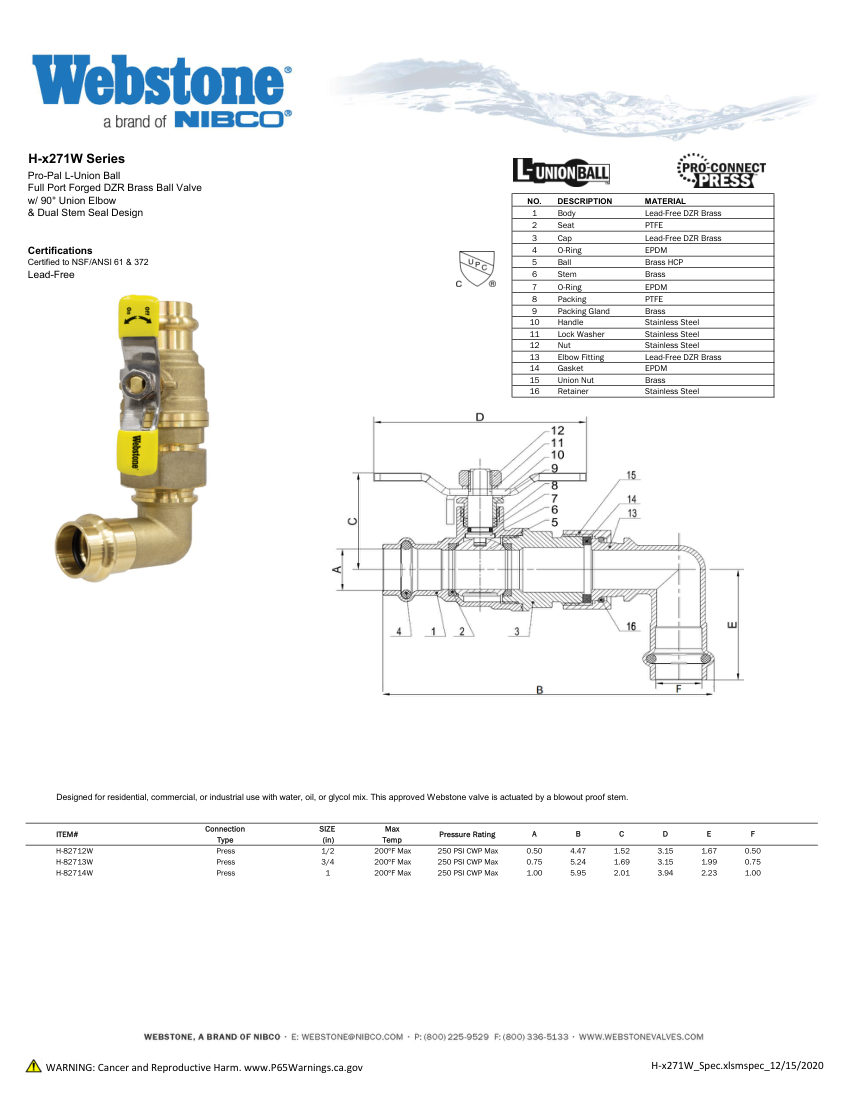

NIBCOH-x271_ZSpec
NIBCO L-Union Ball Valve (H-x271W Series). Model H-82712W, H-82713W, H-82714W. Full Port Forged DZR Brass Body; 90° Union Elbow & Dual Stem Seal Design; Max Temperature 200°F; Blowout Proof Stem. material: Lead-Free DZR Brass
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- NIBCO
- Catalog no.
- H-x271_ZSpec
- Product type
- Plumbing/Valves
- MasterFormat
- 22
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | H-x271_ZSpec |
|---|---|
| Description | NIBCO L-Union Ball Valve (H-x271W Series). Model H-82712W, H-82713W, H-82714W. Full Port Forged DZR Brass Body; 90° Union Elbow & Dual Stem Seal Design; Max Temperature 200°F; Blowout Proof Stem. material: Lead-Free DZR Brass |
| Connection size | 1/2 in, 3/4 in, 1 in |
| End connection | Press |
| Pressure Rating | 250 PSI CWP Max |
| Dimensions | A: 0.50-1.00 in, B: 4.47-5.95 in, C: 1.52-2.01 in, D: 3.15-3.94 in, E: 1.67-2.23 in, F: 0.50-1.00 in |
| Compliance | NSF/ANSI 61 & 372. |
