DIV 22 · PLUMBINGPLUMBING/VALVESCUT SHEET INDEXED

NIBCOH-x367_ZSpec

NIBCO Service Assembly (Valve). Model H-43672. Max Temperature: 200°F; Suitable for expansion tanks up to 8 gallons; Includes Automatic Air Vent & Pressure Gauge; Double o-ring stem seal design. material: Forged Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-x367_ZSpec.pdfData sheet

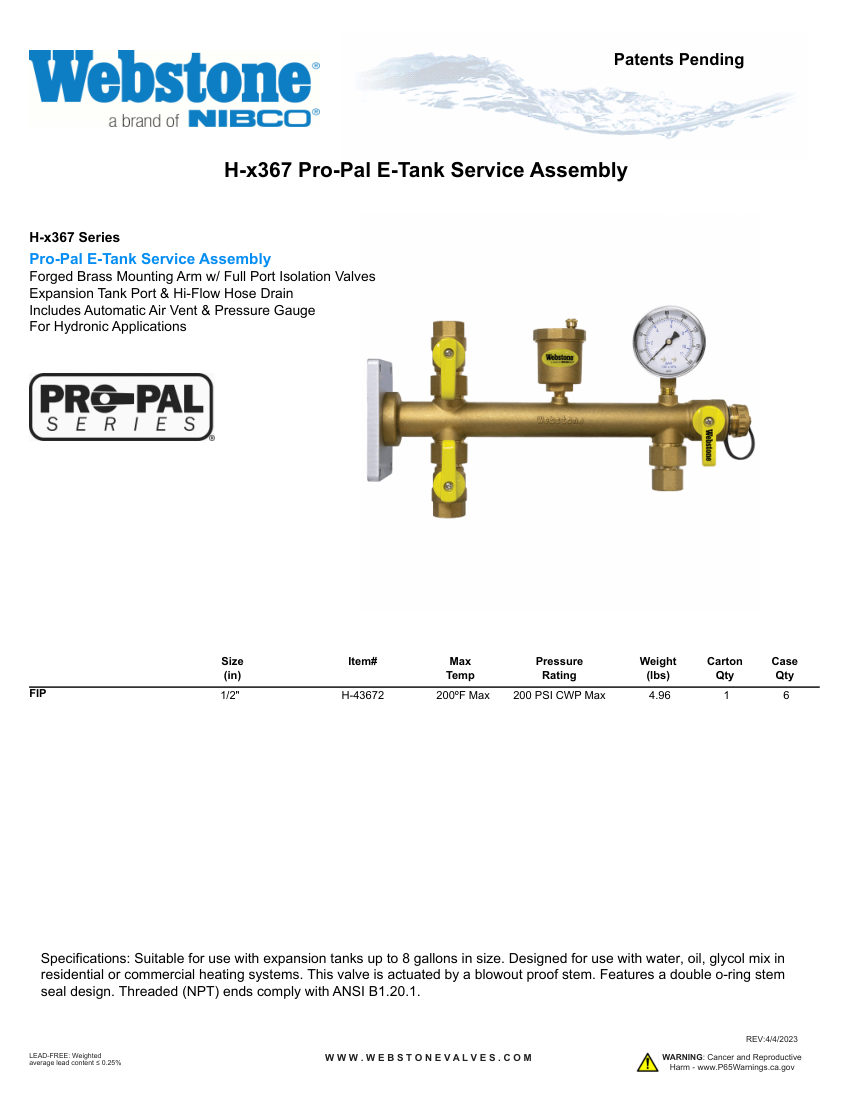

NIBCO H-x367_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-x367_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-x367_ZSpec
DescriptionNIBCO Service Assembly (Valve). Model H-43672. Max Temperature: 200°F; Suitable for expansion tanks up to 8 gallons; Includes Automatic Air Vent & Pressure Gauge; Double o-ring stem seal design. material: Forged Brass
Connection size1/2"
End connectionNPT
Pressure Rating200 PSI CWP Max
MountingForged Brass Mounting Arm
DimensionsB: 2.38 in, C: 12.88 in, D: 9.98 in, E: 2.48 in, F: 3.25 in, G: 3.35 in, H: 3.94 in, I: 2.36 in.
