NIBCO Ball Valve (H-x461 Series). Model H-54612, H-54613, H-54614, H-84613, H-84614. Full Port Forged Brass Body; Hi-Flow Hose Drain; Reversible Handle; Adjustable Packing Glands. material: Forged Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-x461_ZSpec.pdfData sheet

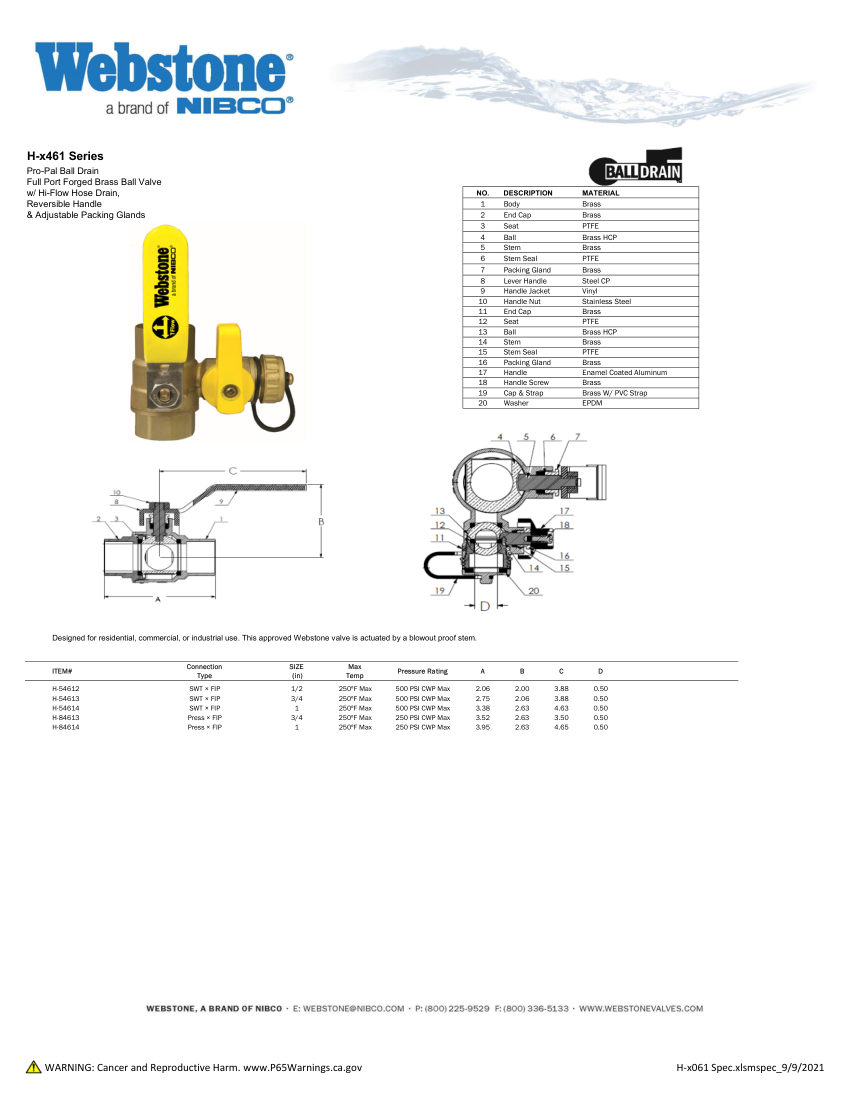

NIBCO H-x461_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-x461_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-x461_ZSpec
DescriptionNIBCO Ball Valve (H-x461 Series). Model H-54612, H-54613, H-54614, H-84613, H-84614. Full Port Forged Brass Body; Hi-Flow Hose Drain; Reversible Handle; Adjustable Packing Glands. material: Forged Brass
Connection size1/2 in, 3/4 in, 1 in
End connectionSWT × FIP, Press × FIP
Pressure Rating500 PSI CWP Max (SWT), 250 PSI CWP Max (Press)
DimensionsA: 2.06-3.95 in, B: 2.00-2.63 in, C: 3.50-4.65 in, D: 0.50 in
ComplianceWebstone Approved.
