NIBCO Transition Tee (H-x685W Series). Model H-x685W. Body material is Lead-Free DZR Brass; O-Ring material is EPDM; Maximum temperature rating is 250°F; Maximum pressure rating is 250 PSI CWP. material: Lead-Free DZR Brass

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFH-x685_ZSpec.pdfData sheet

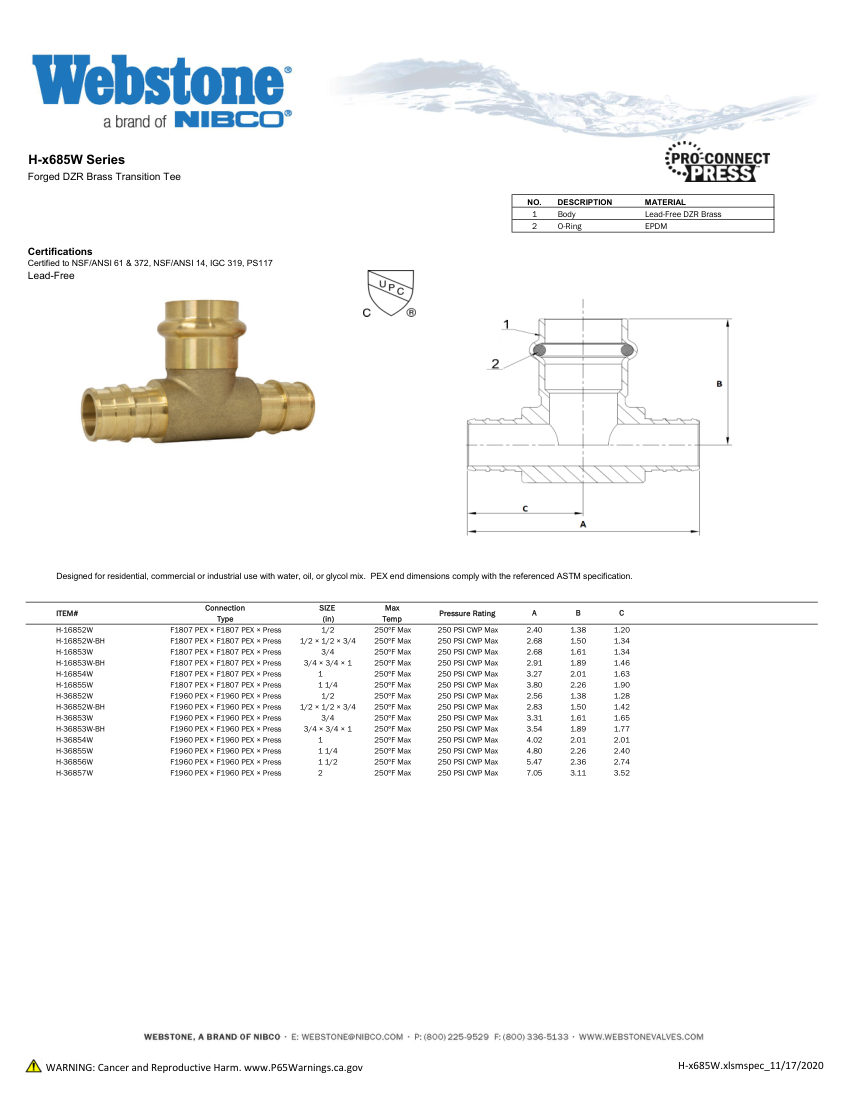

NIBCO H-x685_ZSpec cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
NIBCO
Catalog no.
H-x685_ZSpec
Product type
Plumbing/Valves
MasterFormat
22
Cut sheet
PDF · manufacturer current

Product details

Catalog numberH-x685_ZSpec
DescriptionNIBCO Transition Tee (H-x685W Series). Model H-x685W. Body material is Lead-Free DZR Brass; O-Ring material is EPDM; Maximum temperature rating is 250°F; Maximum pressure rating is 250 PSI CWP. material: Lead-Free DZR Brass
Connection size1/2, 3/4, 1
End connectionF1807 PEX, Press
Pressure Rating250 PSI CWP Max
ComplianceNSF/ANSI 61, NSF/ANSI 372, NSF/ANSI 14, IGC 319, PS117.
